Auto Lift Solutions

Challenger Lifts · Two-Post · ALI Certified

CL10V3

The Versymmetric® two-post lift that spots the widest range of vehicles — symmetric or asymmetric, in the same bay — sold, delivered, and installed by Auto Lift Solutions.

10,000 lb capacity

Questions first? info@autoliftfl.com — we answer fast.

Challenger CL10V3 two-post lift raising a pickup truck

Built to spot anything that rolls in

Challenger's Versymmetric® design lets one bay handle compacts, trucks, and vans without shuffling vehicles back and forth.

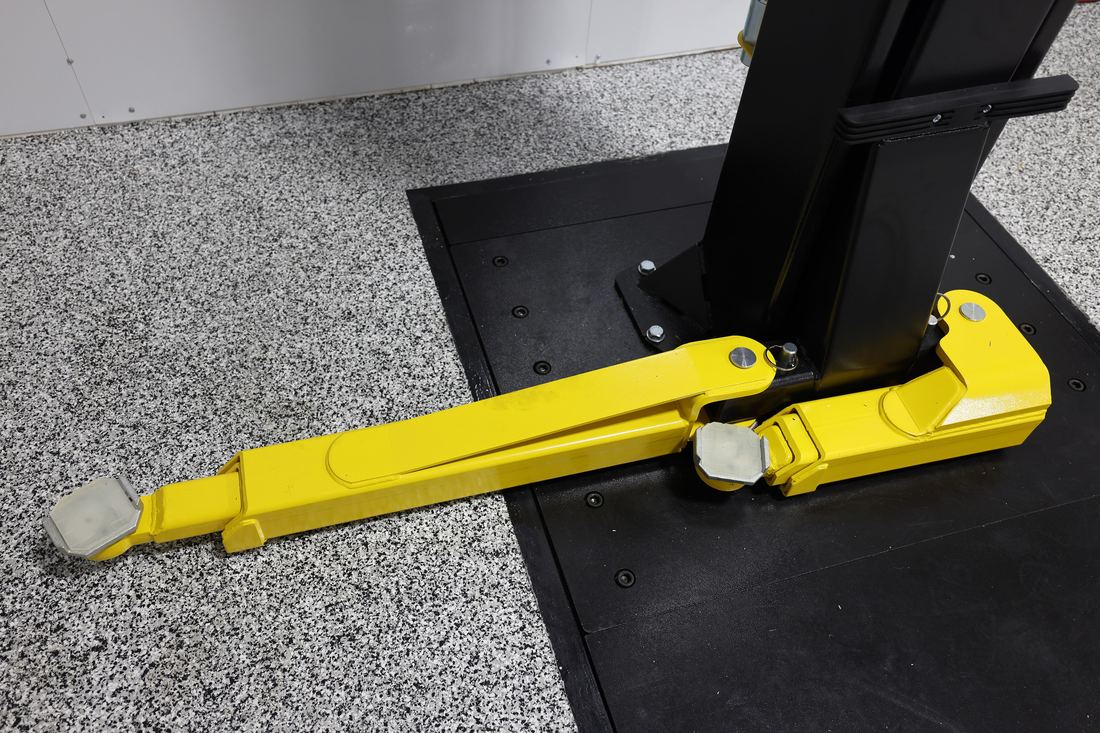

CL10V3 offset three-stage front arms

directSPOT™ offset arms

Three-stage front and rear arms reach the factory lift points directly — symmetric or asymmetric loading in the same bay, no repositioning.

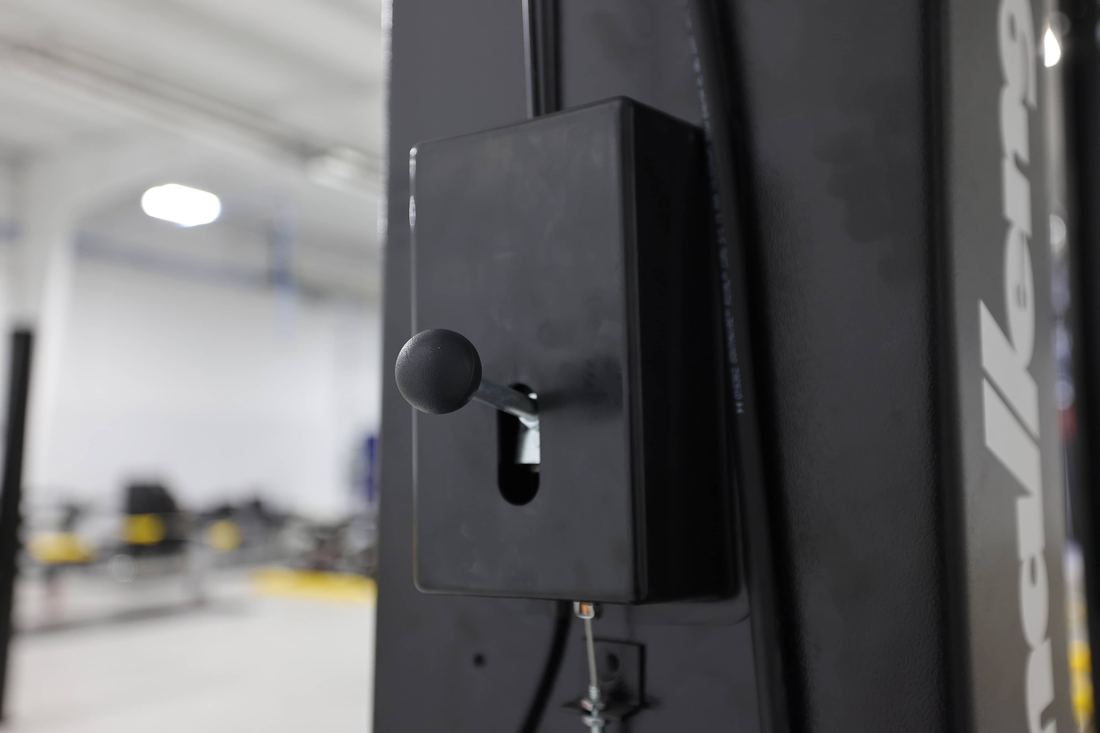

CL10V3 single-point mechanical lock release

Single-point lock release

Pulley-less, jacketed single-point release drops both column locks from one handle. An oversized 5" pulley and 5/16" cable cut stress on the equalization system.

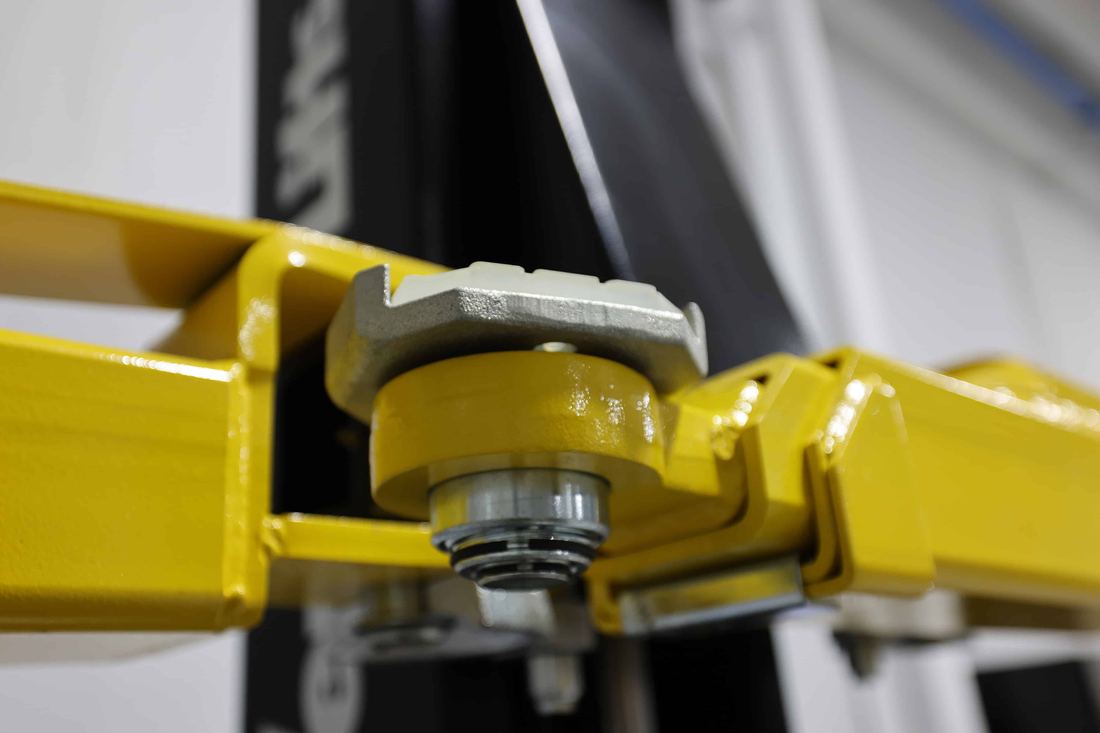

CL10V3 double telescoping screw pad

Double-telescoping screw pads

Premium screw pads adjust from 3⅞" to 6½" — most pickups and unibodies without hunting for stack adapters.

The data plate

The numbers that matter — straight from Challenger's spec sheet.

CHALLENGER · CL10V3 ALI Certified
Lifting capacity10,000 lbs
Max load per arm2,500 lbs
Rise height74⅛"
Front arm reach19⅝" – 42"
Rear arm reach37⅜" – 60"
Screw pad height3⅞" – 6½"
Overall height11' 8"
Overall width11' 6½"
Drive-thru clearance100½"
Motor2 HP, 208–230 V, 1-phase
Low lock height12"
Arms3-stage front & rear

Specifications per Challenger Lifts. Height extensions and adjustable-width configurations available — ask us which fits your building.

Will it fit your shop?

Three measurements decide it. Grab a tape measure — or send us these numbers and we'll confirm before you order.

12 ft
Ceiling height

Minimum clear height for the standard columns. Lower ceiling or taller doors? 2' and 3' column extensions are available.

11' 6½"
Overall width

Column-to-column footprint. Plan roughly a 12-foot bay so doors open comfortably on both sides.

100½"
Drive-thru clearance

What passes between the columns — wide enough for duallys and full-size vans with mirrors folded.

Bought from the people who install it

Auto Lift Solutions sells, delivers, and installs Challenger lifts across Florida — installed by ALI inspectors, documented for compliance from day one.

Installed by an ALI inspector

Freight, placement, anchoring, and load-testing by an authorized service provider with ALI lift inspectors on the team — commissioned to spec, not just bolted down.

Automated maintenance reminders

Opt in to SMS or email reminders for scheduled maintenance. Every visit is logged in our FieldSvc platform, so your service history is documented — not lost in a filing cabinet.

ALI inspections, paperwork included

Annual inspections with your maintenance records already in FieldSvc — the data trail ALI compliance asks for, ready when the inspector arrives.

Configure it your way

QuickCycle™ — 27 s rise / 17 s lower 2' & 3' column extensions Adjustable-width CL10AV3 EV footpad kit Stack & frame adapters Red, blue, or black

Want an option or variant quoted? Call (352) 415-1321 or email info@autoliftfl.com.

Put a CL10V3 in your shop

Order online in a couple of minutes. We'll follow up same-day to schedule delivery and installation.
