John Bean Lifts · Four-Post · ALI Certified
EELR504A / EELR506A
ALI-certified open-front alignment muscle that swallows everything from compact SUVs to dual-wheel heavy-duty trucks — installed, inspected, and serviced by Auto Lift Solutions.
Questions first? info@autoliftfl.com — we answer fast.
Sold through Snap-on · serviced by us
John Bean is Snap-on's wheel-service line, sold through Snap-on's own representatives. Shopping for one? Give us a call and we'll put you in touch with the local authorized rep — no runaround. Already running one? We're an authorized service provider: installation, repair, parts, and ALI inspection. Book service for your EELR504A / EELR506A → · Looking for a new lift? We're an authorized Challenger distributor: see the Challenger range →
More vehicle types, more alignment revenue
Ultra-wide column clearance, 26-inch pro-style runways, and enhanced rear slip plates optimize alignments on a wide variety of vehicle sizes — certified by ALI to the most stringent ANSI requirements.

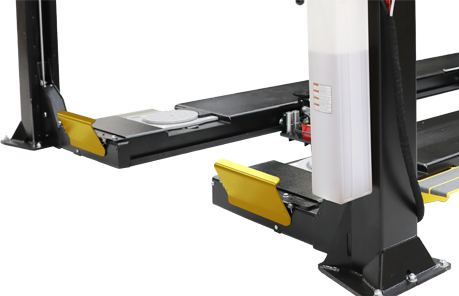

Open-front cross beam
Walk straight into the adjustment areas — versatile front wheel stops meet ALI requirements while accommodating ultra-low-profile, long vehicles.

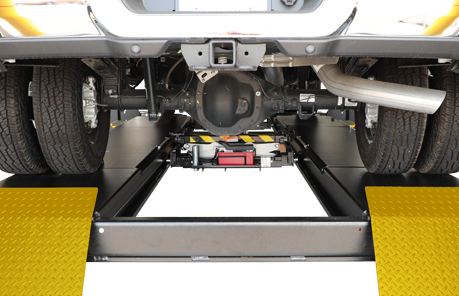

26" pro-style runways
Best-in-class 26-inch-wide runways take wide-track vehicles with ease, and an easy-on ramp with 8" lowered height loads low-profile cars without drama.

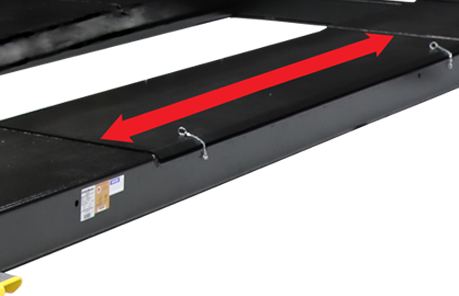

100" rear slip plates
Extra-long, full-floating flush-mount slip plates with Delrin® polymer ball-transfer units handle four-wheel alignments on long and short wheelbases — low maintenance, high performance.
The data plate
The numbers that matter — straight from John Bean's spec sheet.
Specifications per John Bean (Snap-on® Equipment) across EELR504APKG, EELR504LLPKG, EELR506APKG, and EELR506LLPKG. OEM-trusted equipment for Buick, Cadillac, Chevrolet, Chrysler, Dodge, and Ram.
Will it fit your shop?
Three measurements decide it. Grab a tape measure — or send us these numbers and we'll confirm which version fits your bay.
For the standard-length rack (183" max wheelbase). The extended EELR506A wants 14' x 26' and takes wheelbases to 210½".
Wider rear columns let dual-wheel heavy-duty trucks drive on with ease, with a full 125" of body clearance.
Column tops stand just over 8' — comfortable under most shop ceilings.
Where we come in on a EELR504A / EELR506A
Wherever you buy it, this is the part we handle — anywhere in Florida.
Repair and parts
Authorized John Bean service provider — cylinders, cables, locks, power units, and controls. We rebuild hydraulic cylinders in-house in Micanopy, so a discontinued part is not the end of the lift.
ALI-certified inspection
Annual inspection by ALI Certified Lift Inspectors with the serialized sticker and the paperwork — logged in our FieldSvc platform so the history is there when you need it.
Installation and relocation
New delivery, added bay, or a move across town — we set, anchor, and load-test John Bean lifts to spec and commission them properly, whoever you bought them from.
Need a hand with a EELR504A / EELR506A?
Installing one, or fixing one that's down — either way the form comes preloaded with this model, so you only have to tell us what you need. A photo of the data plate gets you a parts answer on the first call.
