Mohawk Lifts · Two-Post
ML-220
A clear-floor 20,000 lb workhorse with twin oversized cylinders and no chains, cables, or equalizer bars to maintain — backed by Mohawk's 25-year structural warranty — installed, inspected, and serviced by Auto Lift Solutions.
Questions first? info@autoliftfl.com — we answer fast.
Mohawk sells it · we install and service it
Mohawk sells this one factory-direct, and that works out fine — we're an authorized Mohawk installer and service provider. Order it from Mohawk and we'll meet the freight truck: set, anchored, load-tested, and certified with our own ALI sticker. After that we're the ones who maintain it. Book service for your ML-220 → · Looking for a new lift? We're an authorized Challenger distributor: see the Challenger range →
Heavy-duty performance without compromise
Passenger vehicles, fleet trucks, commercial vans — the ML-220 lifts them all on short 8' 7" columns.

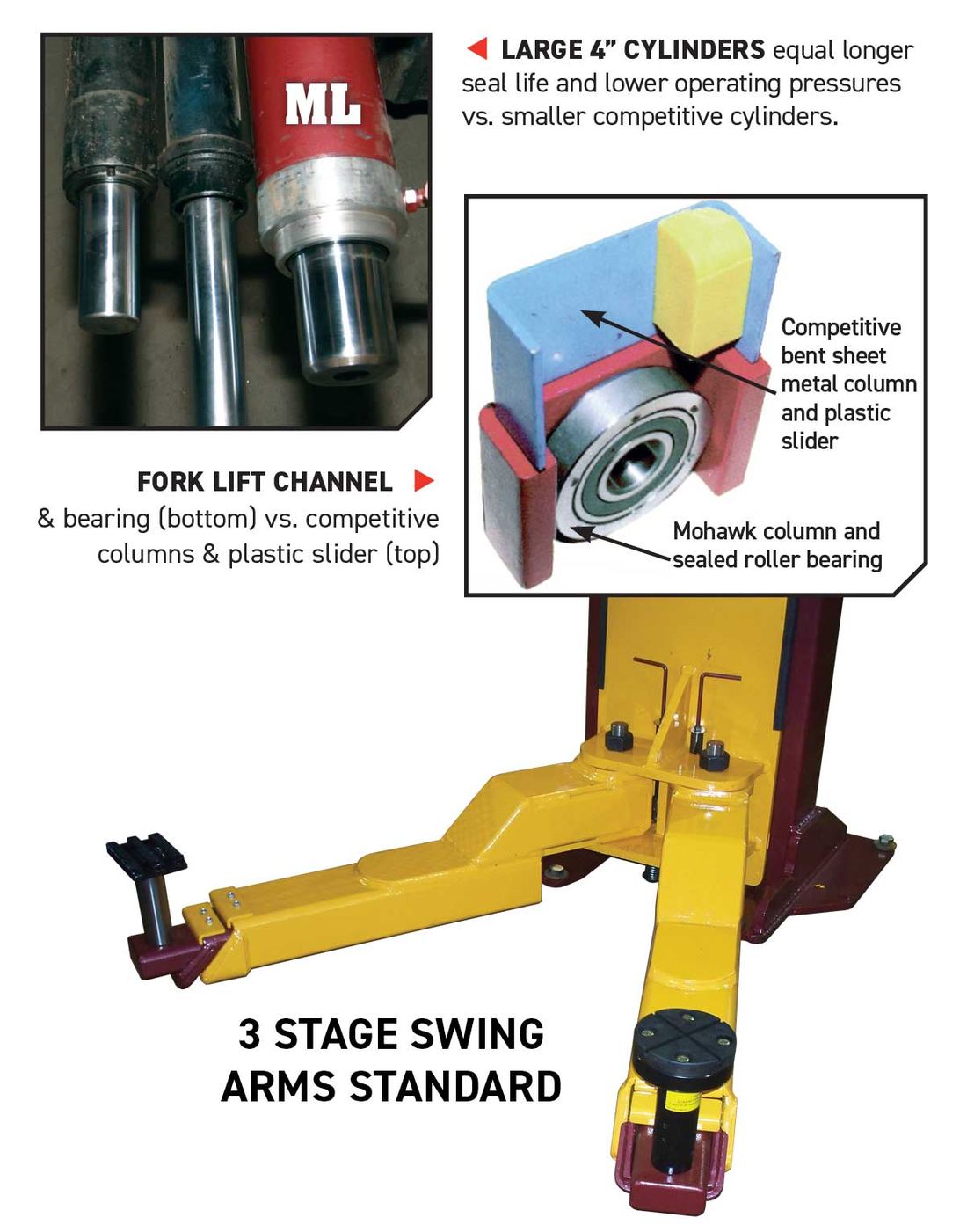

¾" forklift-mast columns
Columns from ¾"-thick forklift masts with carriages gliding on eight double-sealed, self-lubricating steel ball-bearing rollers — friction-free travel with zero greasing.

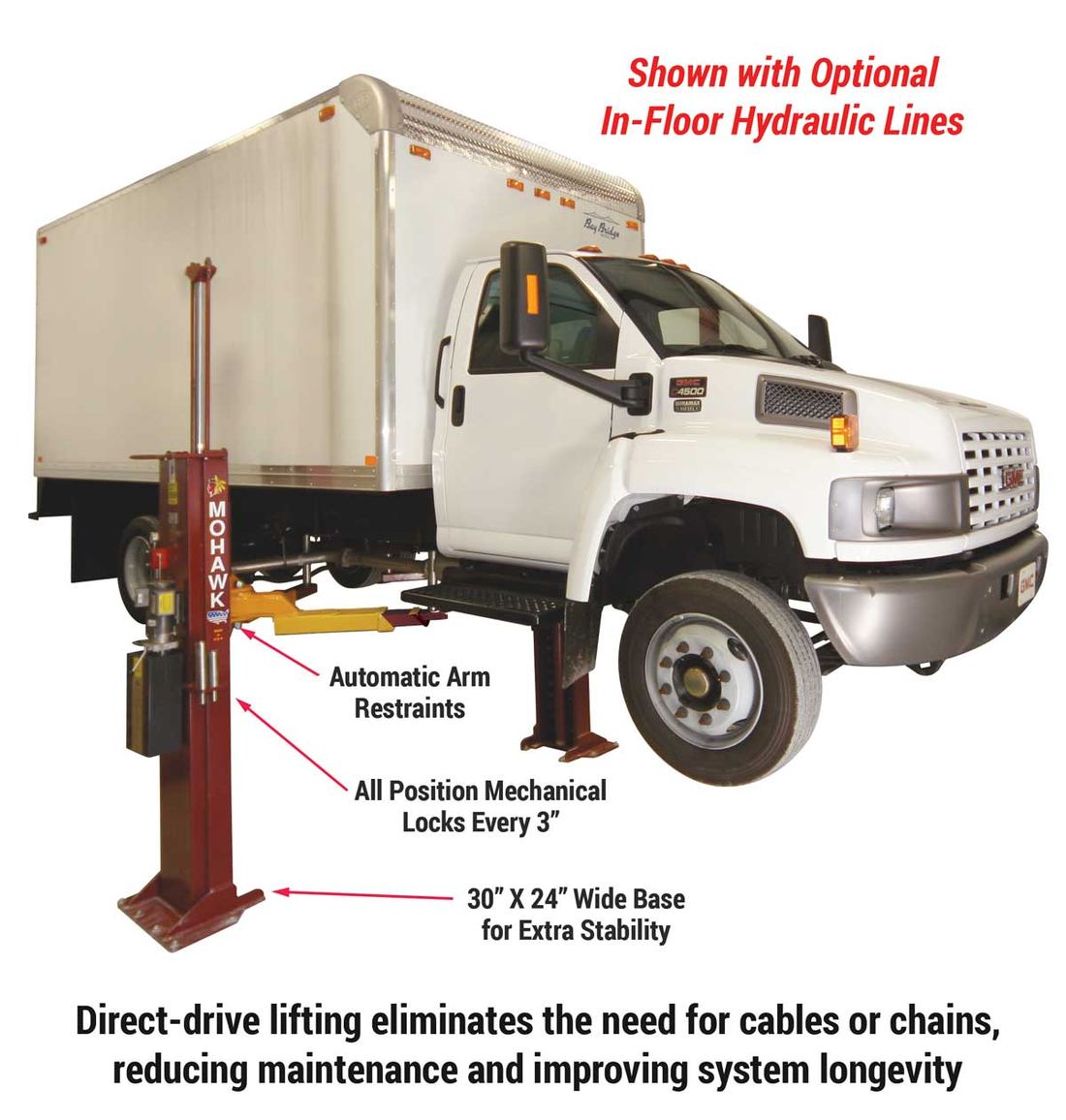

Ground-up safety locks
Mechanical locks engage at all positions from ground level to full height in both columns, backed by patented infinite-position hydraulic safeties, velocity fuses, and automatic swing-arm restraints.
Reach any lift point
Low-profile 5" swing arms fit under most passenger vehicles; 5", 7½", and 10" stackable adaptor pads ship standard, and three-stage arms reach the furthest lifting points.
The data plate
The numbers that matter — straight from Mohawk's spec sheet.
Specifications per Mohawk Lifts. Twin oversized 4" hydraulic cylinders with patented hydraulic synchronization — no cables, pulleys, or equalizer chains.
Will it fit your shop?
Three measurements decide it. Grab a tape measure — or send us these numbers and we'll confirm it fits your bay.
20,000 lbs of capacity on short columns — stainless lines adjust to any ceiling or route in-floor for tall vans.
Column-to-column footprint. Plan roughly a 13½-foot bay for truck doors on both sides.
4,000 psi mix at 6½" standard base (5½" wide base) — sixteen ¾" x 6" anchor bolts included.
Where we come in on a ML-220
Wherever you buy it, this is the part we handle — anywhere in Florida.
Repair and parts
Authorized Mohawk service provider — cylinders, cables, locks, power units, and controls. We rebuild hydraulic cylinders in-house in Micanopy, so a discontinued part is not the end of the lift.
ALI-certified inspection
Annual inspection by ALI Certified Lift Inspectors with the serialized sticker and the paperwork — logged in our FieldSvc platform so the history is there when you need it.
Installation and relocation
New delivery, added bay, or a move across town — we set, anchor, and load-test Mohawk lifts to spec and commission them properly, whoever you bought them from.
Need a hand with a ML-220?
Installing one, or fixing one that's down — either way the form comes preloaded with this model, so you only have to tell us what you need. A photo of the data plate gets you a parts answer on the first call.
