Mohawk Lifts · Two-Post
ML-220XL
The ML-220 platform stretched for oversized pickups, fleet trucks, and high-roof vans — 10' columns and a 7' 2¼" full-rise pad height, backed by Mohawk's 25-year structural warranty — installed, inspected, and serviced by Auto Lift Solutions.
Questions first? info@autoliftfl.com — we answer fast.
Mohawk sells it · we install and service it
Mohawk sells this one factory-direct, and that works out fine — we're an authorized Mohawk installer and service provider. Order it from Mohawk and we'll meet the freight truck: set, anchored, load-tested, and certified with our own ALI sticker. After that we're the ones who maintain it. Book service for your ML-220XL → · Looking for a new lift? We're an authorized Challenger distributor: see the Challenger range →
Extra reach for high-profile vehicles
Same proven ML-220 running gear — taller columns and more rise for the trucks and vans that keep growing.

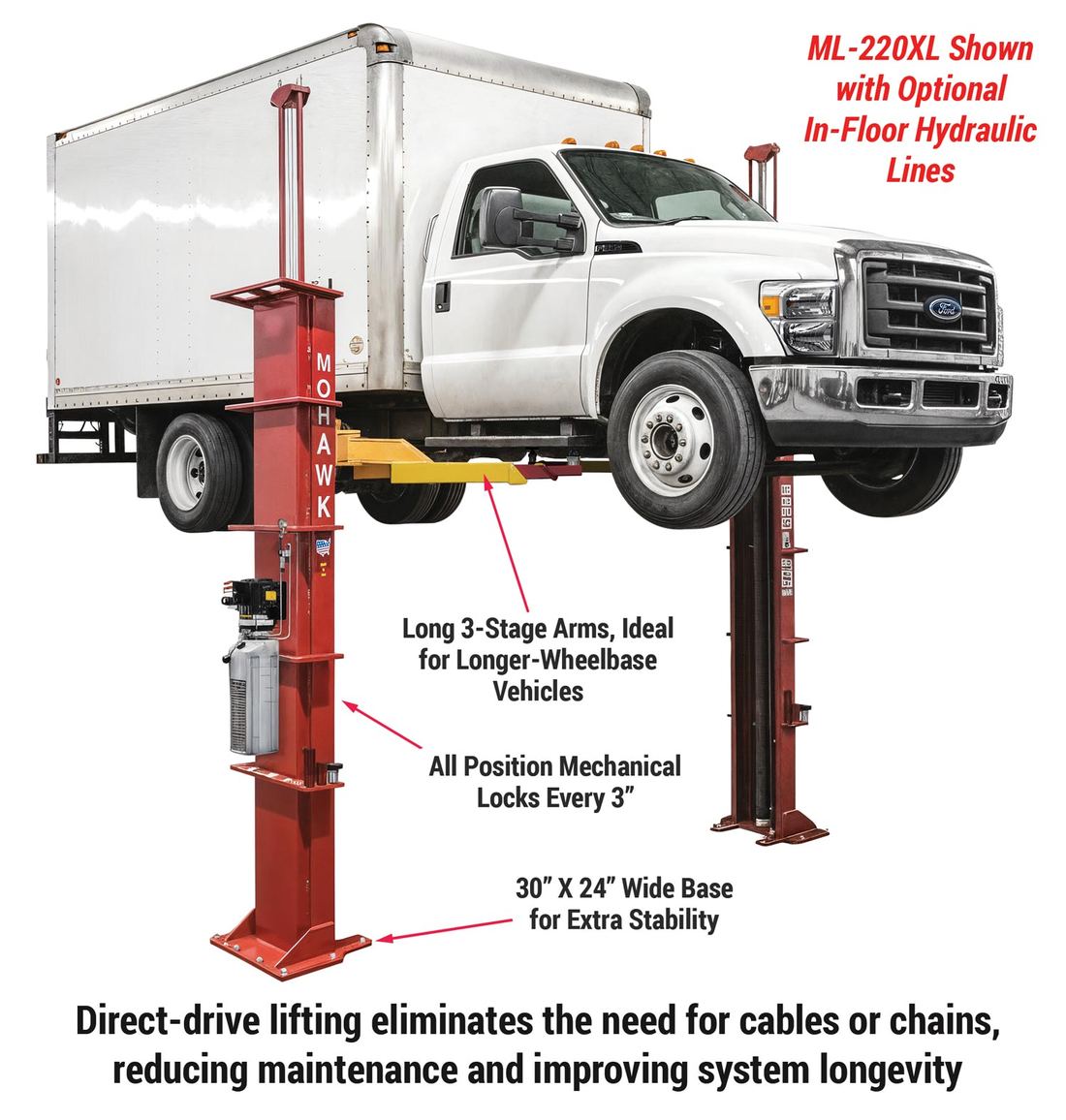

Full-range locks every 3"
Both columns use full-range mechanical locks engaging every 3", backed by infinite-position hydraulic safeties, pressure-compensated flow controls, velocity fuses, and automatic swing-arm restraints.

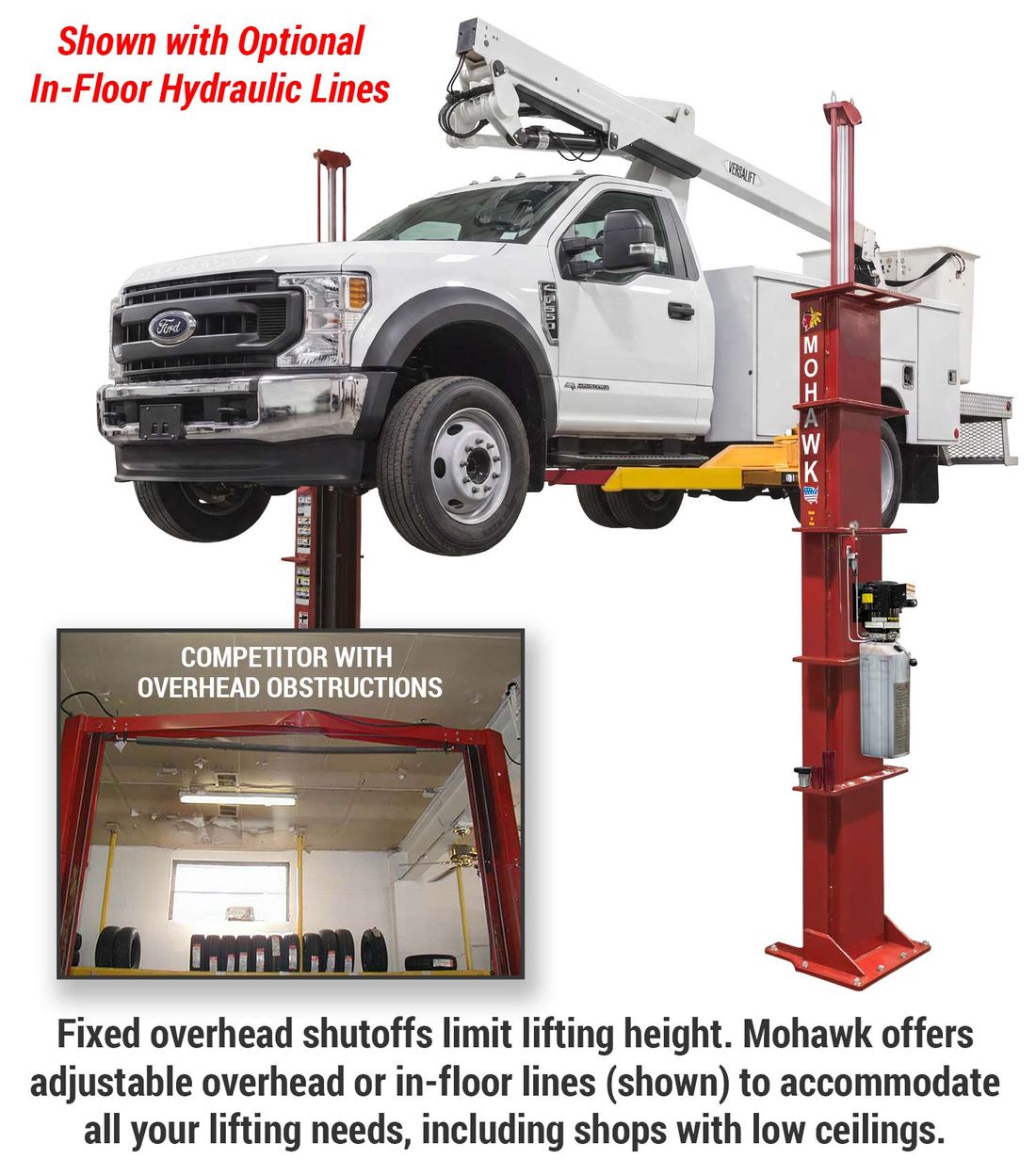

Hydraulic sync, no cables
Patented hydraulic synchronization with stainless steel lines routed overhead or in-floor replaces wire-rope cables and plastic pulleys; direct-drive lifting rods cut wear points.
Spin-up truck adapters
Included 3" and 6" stackable adapters with spin-up pads give precise, level contact on SUVs and work trucks; three-stage arms reach challenging lift points.
The data plate
The numbers that matter — straight from Mohawk's spec sheet.
Specifications per Mohawk Lifts. Carriages ride sixteen 4" double-sealed, self-lubricating ball-bearing rollers — eight per column.
Will it fit your shop?
Three measurements decide it. Grab a tape measure — or send us these numbers and we'll confirm it fits your bay.
The XL's taller columns need more ceiling than the standard ML-220 — overhead lines run 15' standard or route in-floor.
Column-to-column footprint. Plan roughly a 13½-foot bay for full-size truck doors.
4,000 psi mix at 6½" standard base (5½" wide base) — sixteen ¾" x 6" anchor bolts included.
Where we come in on a ML-220XL
Wherever you buy it, this is the part we handle — anywhere in Florida.
Repair and parts
Authorized Mohawk service provider — cylinders, cables, locks, power units, and controls. We rebuild hydraulic cylinders in-house in Micanopy, so a discontinued part is not the end of the lift.
ALI-certified inspection
Annual inspection by ALI Certified Lift Inspectors with the serialized sticker and the paperwork — logged in our FieldSvc platform so the history is there when you need it.
Installation and relocation
New delivery, added bay, or a move across town — we set, anchor, and load-test Mohawk lifts to spec and commission them properly, whoever you bought them from.
Need a hand with a ML-220XL?
Installing one, or fixing one that's down — either way the form comes preloaded with this model, so you only have to tell us what you need. A photo of the data plate gets you a parts answer on the first call.
