Parallelogram
The heaviest-built parallelogram lift in the world — 50,000 to 100,000 lb capacities for transit buses and the toughest fleet iron, surface- or flush-mounted — installed, inspected, and serviced by Auto Lift Solutions.
Questions first? info@autoliftfl.com — we answer fast.
Mohawk sells it · we install and service it
Mohawk sells this one factory-direct, and that works out fine — we're an authorized Mohawk installer and service provider. Order it from Mohawk and we'll meet the freight truck: set, anchored, load-tested, and certified with our own ALI sticker. After that we're the ones who maintain it. Book service for your Parallelogram → · Looking for a new lift? We're an authorized Challenger distributor: see the Challenger range →
Transit-grade lifting, computer-level control
Factory-plumbed for air and pre-wired for runway lighting — a complete heavy-fleet bay in one machine.

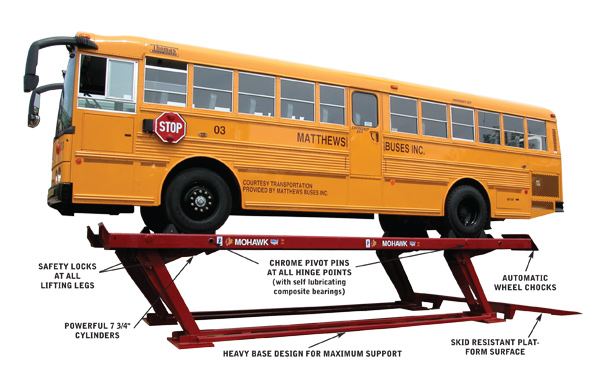

7¾" cylinders, no torsion bar
Large 7¾" hydraulic cylinders run at lower pressure for longer life, with self-lubricating composite bearings and chrome-plated pivot pins — and no cross-brace or torsion bar to trip over or bind.
Computer-synchronized platforms
Dual chain-driven encoders monitor movement 60 times per second, programmable lift heights suit different vehicles and ceilings, and a plain-English LCD console self-tests at startup.
Wheels-free options
Optional 25,000 or 50,000 lb air-hydraulic rolling jacks deliver true wheels-free brake, tire, and axle service; a manual pump lowers the lift safely in a power loss.
The data plate
The numbers that matter — straight from Mohawk's spec sheet.
Specifications per Mohawk Lifts. SM = surface mount, FM = flush mount. Remember the platforms travel forward 36⅛" as they rise.
Will it fit your shop?
Three measurements decide it. Grab a tape measure — or send us these numbers and we'll confirm it fits your bay.
Surface-mount footprint by track length — flush-mount versions recess into the floor.
With 44" clear between platforms for walk-through under-vehicle access.
Parallelogram geometry moves the vehicle forward as it rises — plan bay depth accordingly.
Where we come in on a Parallelogram
Wherever you buy it, this is the part we handle — anywhere in Florida.
Repair and parts
Authorized Mohawk service provider — cylinders, cables, locks, power units, and controls. We rebuild hydraulic cylinders in-house in Micanopy, so a discontinued part is not the end of the lift.
ALI-certified inspection
Annual inspection by ALI Certified Lift Inspectors with the serialized sticker and the paperwork — logged in our FieldSvc platform so the history is there when you need it.
Installation and relocation
New delivery, added bay, or a move across town — we set, anchor, and load-test Mohawk lifts to spec and commission them properly, whoever you bought them from.
Need a hand with a Parallelogram?
Installing one, or fixing one that's down — either way the form comes preloaded with this model, so you only have to tell us what you need. A photo of the data plate gets you a parts answer on the first call.
