Auto Lift Solutions

Mohawk Lifts · Two-Post

System I

Mohawk's flagship 10,000 lb two-post — ¾" forklift-mast steel columns, twin heavy-duty cylinders, and the industry's best 25-year warranty — sold, delivered, and installed by Auto Lift Solutions.

10,000 lb capacity

Questions first? info@autoliftfl.com — we answer fast.

Mohawk System I two-post lift

Built to outperform the competition

Solid steel where others use formed sheet metal — the System I is engineered for a lifetime of trouble-free service.

System I forklift-mast steel columns

¾" forklift-mast columns

Columns of ¾" thick, 5¾"-wide forklift mast steel with carriages riding on eight double-sealed, self-lubricating steel ball-bearing rollers — no plastic slide blocks to wear out.

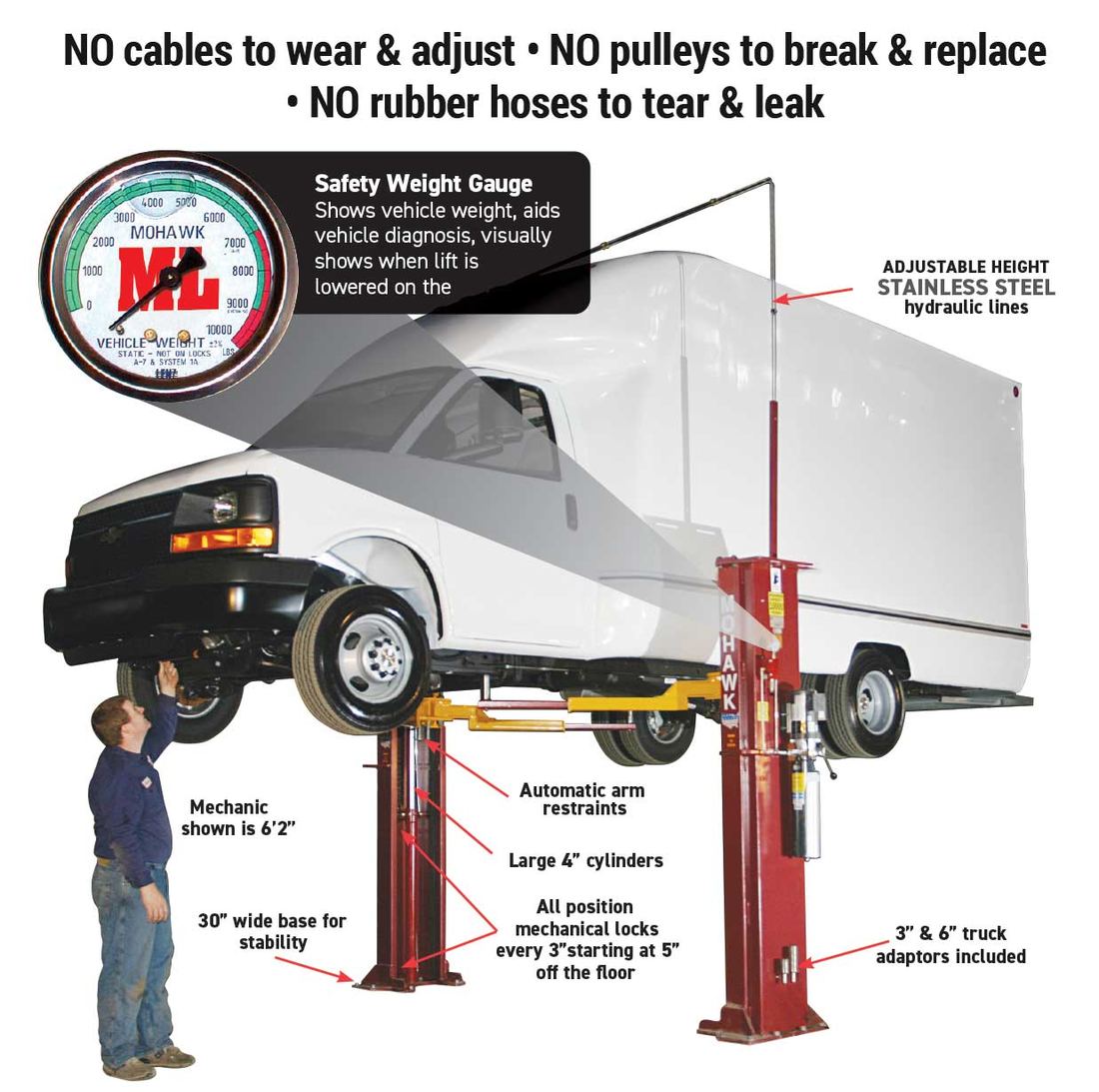

System I patented safety systems

Patented layered safeties

All-position mechanical locks engage every 3" from 5" off the ground to full height, backed by patented internal hydraulic safeties, flow controls, velocity fuses, and automatic swing-arm restraints.

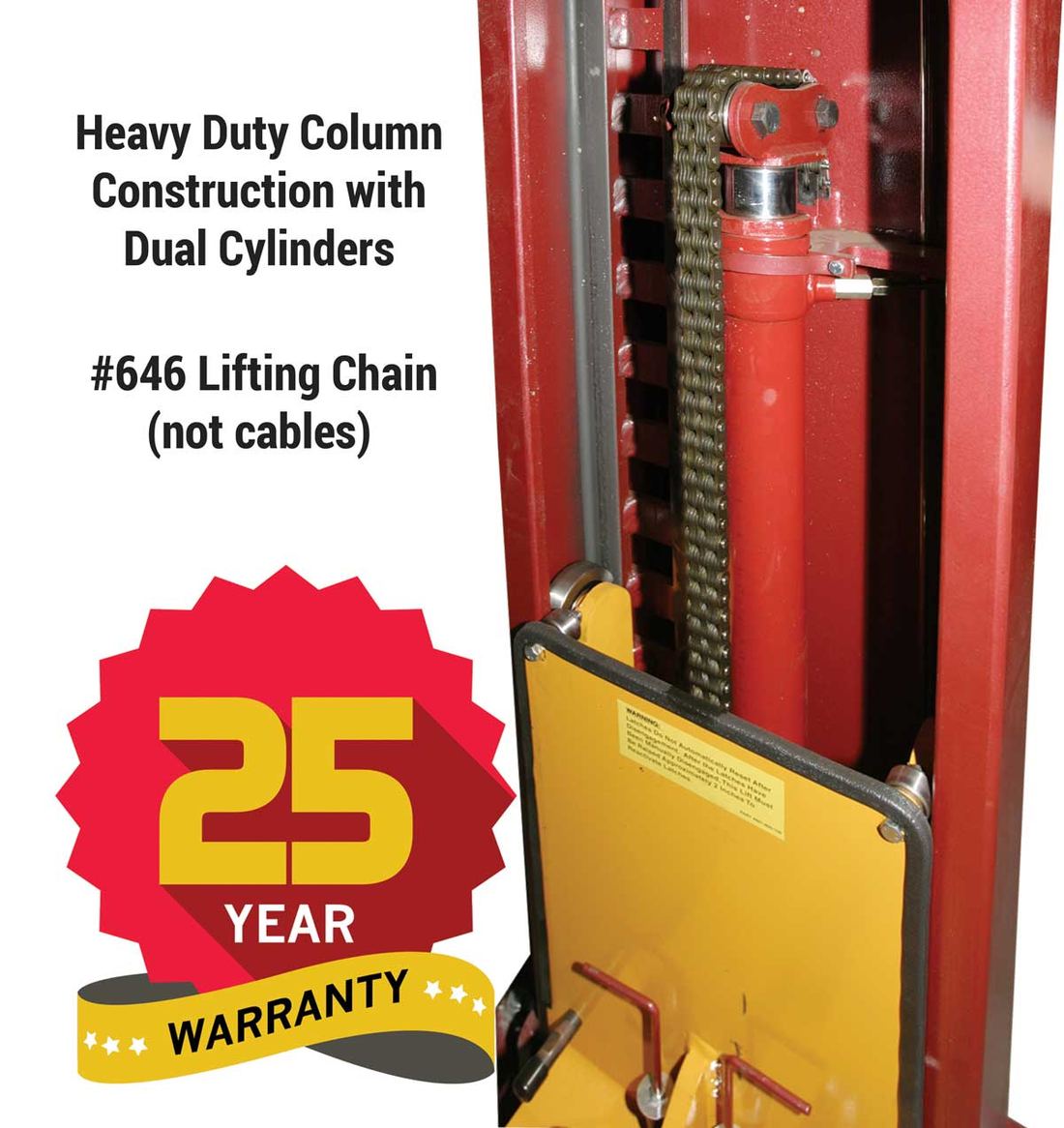

System I hydraulic synchronization detail

Cable-free hydraulic sync

Patented hydraulic synchronization between twin oversized cylinders — no overhead cables, equalizer pulleys, or screw drives. Adjustable stainless lines set to any ceiling height or route in-floor.

The data plate

The numbers that matter — straight from Mohawk's spec sheet.

MOHAWK · System I Mohawk Lifts
Lifting capacity10,000 lbs
Motor2 HP, 208–230 V, 1-phase (3-phase optional)
Lifting height6' under arm
Lift pad height @ full rise6' 3½" (7' ½" with adaptors)
Arm pad height3½" low-profile arms
Overall width11' 10"
Width between posts10' (adjustable)
Column height8' 7"
Drive system#646 leaf chain routed over cylinder
Lifting speed50 s at full load
Lift weight2,500 lbs
Warranty25-yr structural / 10-yr mechanical / lifetime cylinder seals

Specifications per Mohawk Lifts (System 1A). 3" and 6" stackable truck adaptors included as standard equipment.

Will it fit your shop?

Three measurements decide it. Grab a tape measure — or send us these numbers and we'll confirm before you order.

8' 7"
Column height

Overhead hydraulic lines run at 12' standard but adjust to any ceiling — or route in-floor for low-roof shops.

11' 10"
Overall width

Column-to-column footprint. Plan a 12-foot bay for comfortable door swing on both sides.

6½"
Concrete floor

4,000 psi mix at 6½" — sixteen ¾" anchor bolts included.

Bought from the people who install it

Auto Lift Solutions sells, delivers, and installs Mohawk lifts across Florida — installed by ALI inspectors, documented for compliance from day one.

Installed by an ALI inspector

Freight, placement, anchoring, and load-testing by an authorized service provider with ALI lift inspectors on the team — commissioned to spec, not just bolted down.

Automated maintenance reminders

Opt in to SMS or email reminders for scheduled maintenance. Every visit is logged in our FieldSvc platform, so your service history is documented — not lost in a filing cabinet.

ALI inspections, paperwork included

Annual inspections with your maintenance records already in FieldSvc — the data trail ALI compliance asks for, ready when the inspector arrives.

Configure it your way

Speedlane drive-on adaptor Dual-trough turf maintenance kit Safety weight gauge Swing-arm tool holders Adjustable screw pads Wheel adaptors for car storage

Want an option or variant quoted? Call (352) 415-1321 or email info@autoliftfl.com.

Put a System I in your shop

Tell us about your shop and we'll quote it with delivery and installation — usually same-day.
