Mohawk Lifts · Two-Post
LMF-12 / TP-16 / TP-18
One heavy-duty clear-floor platform, three capacities — 12,000, 16,000, and 18,000 lbs — with twin-cylinder direct drive and Mohawk's 25-year structural warranty — installed, inspected, and serviced by Auto Lift Solutions.
Questions first? info@autoliftfl.com — we answer fast.
Mohawk sells it · we install and service it
Mohawk sells this one factory-direct, and that works out fine — we're an authorized Mohawk installer and service provider. Order it from Mohawk and we'll meet the freight truck: set, anchored, load-tested, and certified with our own ALI sticker. After that we're the ones who maintain it. Book service for your LMF-12 / TP-16 / TP-18 → · Looking for a new lift? We're an authorized Challenger distributor: see the Challenger range →
Heavy-duty lifts for heavy-duty service
Pick the capacity your fleet needs — the plate-steel construction, direct drive, and layered safeties stay the same.

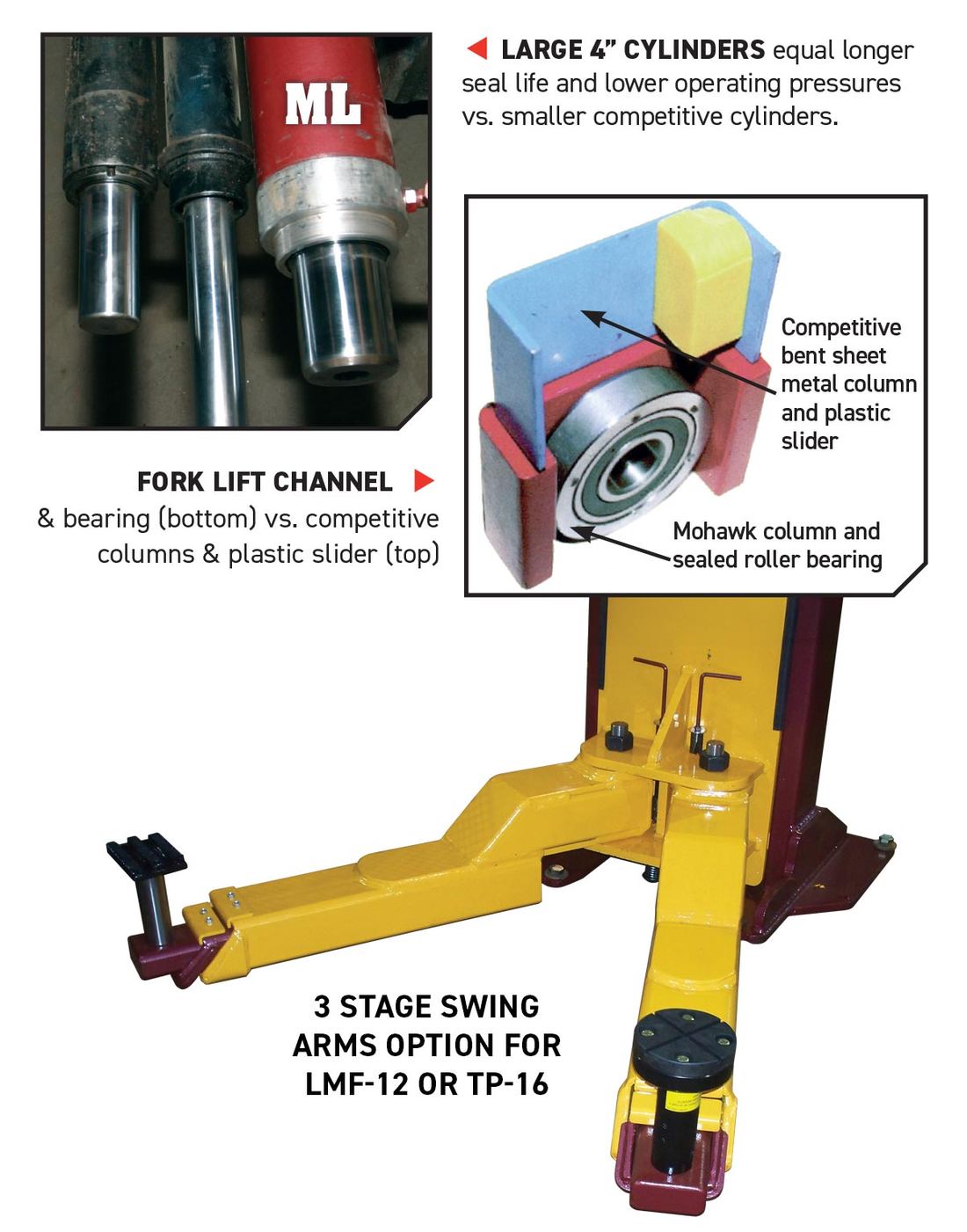

¾" forklift-mast columns
Every column is cut from ¾" thick forklift mast steel, and every carriage rides eight double-sealed, self-lubricating steel ball-bearing rollers — no plastic sliders, no greasing.

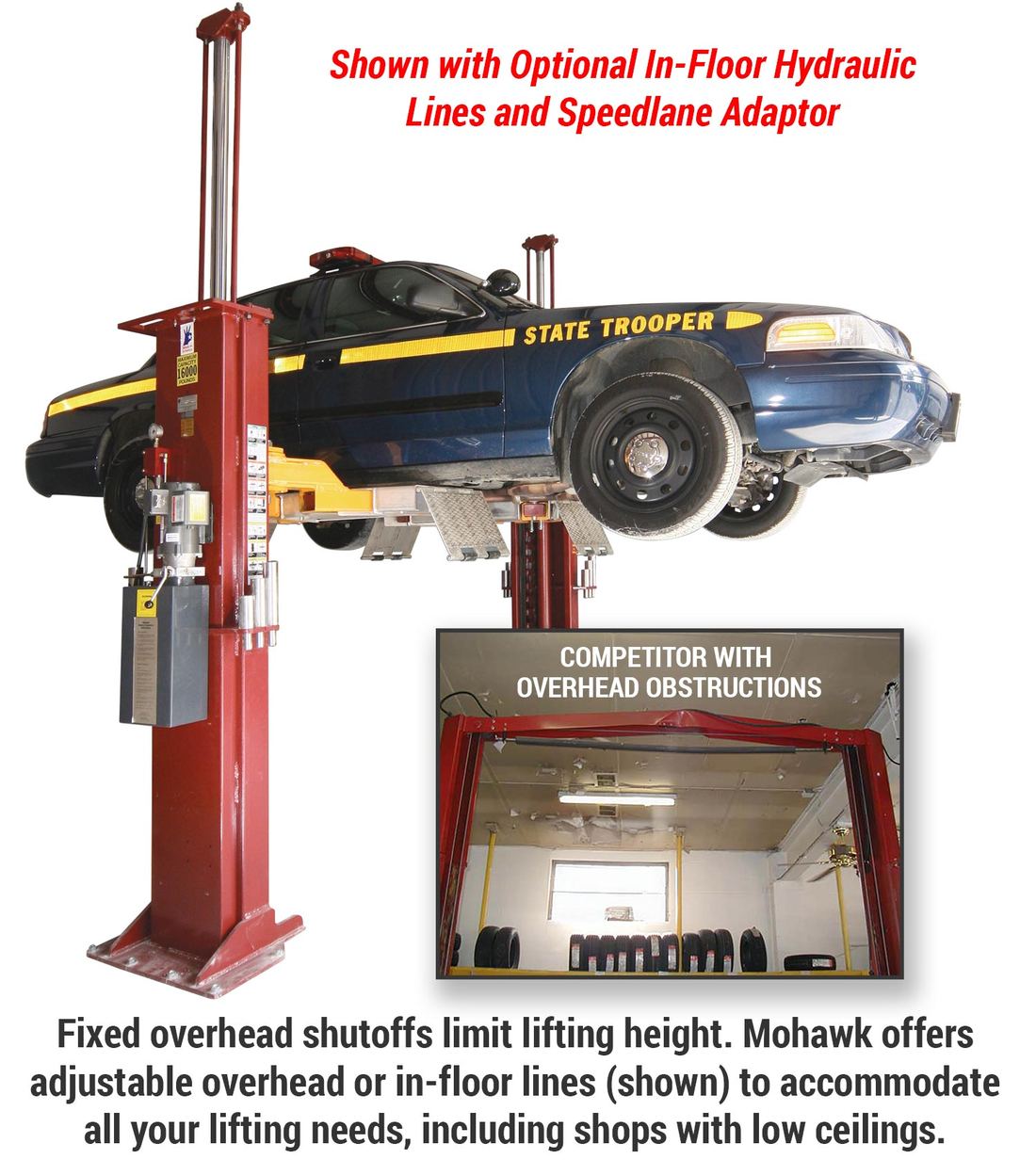

Twin-cylinder direct drive
Dual 4" heavy-duty cylinders with direct-drive lifting rods — no equalizer chains, cables, or pulleys to stretch, fray, or fail. Patented hydraulic synchronization keeps both sides level.

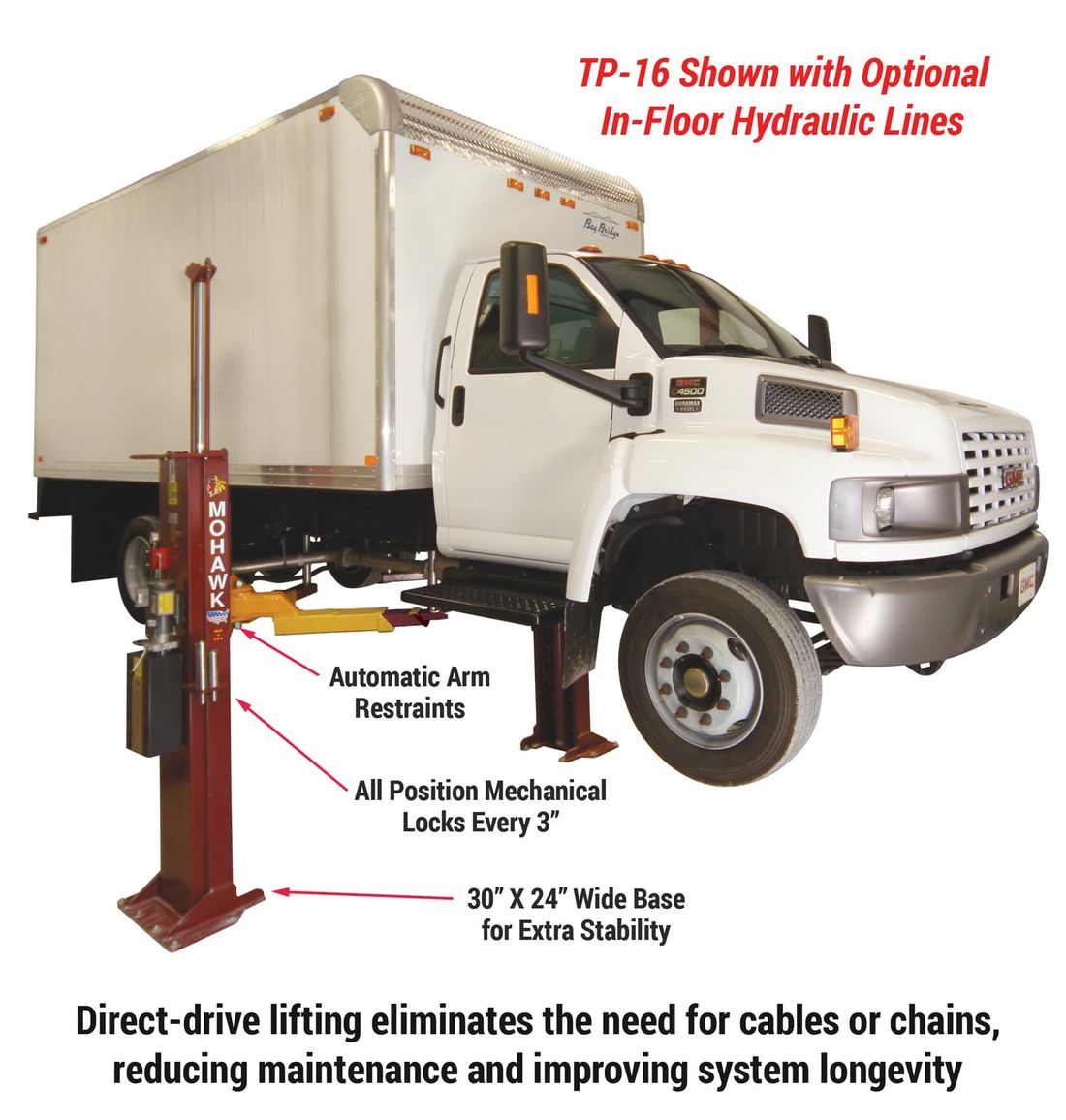

Patented layered safeties
Mechanical locks engage at all positions from ground level to full height in both columns, backed by infinite-position hydraulic safeties, flow controls, velocity fuses, and automatic swing-arm restraints.
The data plate
The numbers that matter — straight from Mohawk's spec sheet.
Specifications per Mohawk Lifts. 5", 7½", and 10" stackable frame adaptors included standard on all three models. Mohawk's Extended Lifetime Cylinder Seal Warranty supplies the seals themselves to the original purchaser only — it does not cover the rebuild labour, which is work we do in-house.
Will it fit your shop?
Three measurements decide it. Grab a tape measure — or send us these numbers and we'll confirm it fits your bay.
Short columns for a heavy-duty lift — overhead lines run 15' standard, adjust to any ceiling, or route in-floor.
Column-to-column footprint. Plan roughly a 13-foot bay so doors open comfortably on both sides.
4,000 psi mix at 6½" — sixteen ¾" x 6" anchor bolts included.
Where we come in on a LMF-12 / TP-16 / TP-18
Wherever you buy it, this is the part we handle — anywhere in Florida.
Repair and parts
Authorized Mohawk service provider — cylinders, cables, locks, power units, and controls. We rebuild hydraulic cylinders in-house in Micanopy, so a discontinued part is not the end of the lift.
ALI-certified inspection
Annual inspection by ALI Certified Lift Inspectors with the serialized sticker and the paperwork — logged in our FieldSvc platform so the history is there when you need it.
Installation and relocation
New delivery, added bay, or a move across town — we set, anchor, and load-test Mohawk lifts to spec and commission them properly, whoever you bought them from.
Need a hand with a LMF-12 / TP-16 / TP-18?
Installing one, or fixing one that's down — either way the form comes preloaded with this model, so you only have to tell us what you need. A photo of the data plate gets you a parts answer on the first call.
