Mohawk Lifts · Two-Post · ALI Certified
TP-20
ALI Gold Label certified and built from 7" x 1" forklift-mast channel, the TP-20 puts 20,000 lbs of truck in the air on a surface-mounted two-post — installed, inspected, and serviced by Auto Lift Solutions.
Questions first? info@autoliftfl.com — we answer fast.
Mohawk sells it · we install and service it
Mohawk sells this one factory-direct, and that works out fine — we're an authorized Mohawk installer and service provider. Order it from Mohawk and we'll meet the freight truck: set, anchored, load-tested, and certified with our own ALI sticker. After that we're the ones who maintain it. Book service for your TP-20 → · Looking for a new lift? We're an authorized Challenger distributor: see the Challenger range →
Fleet-truck strength, certified safe
Auto shops, fleet garages, and municipal departments spec the TP-20 for one reason: it's built heavier than anything else in its class.

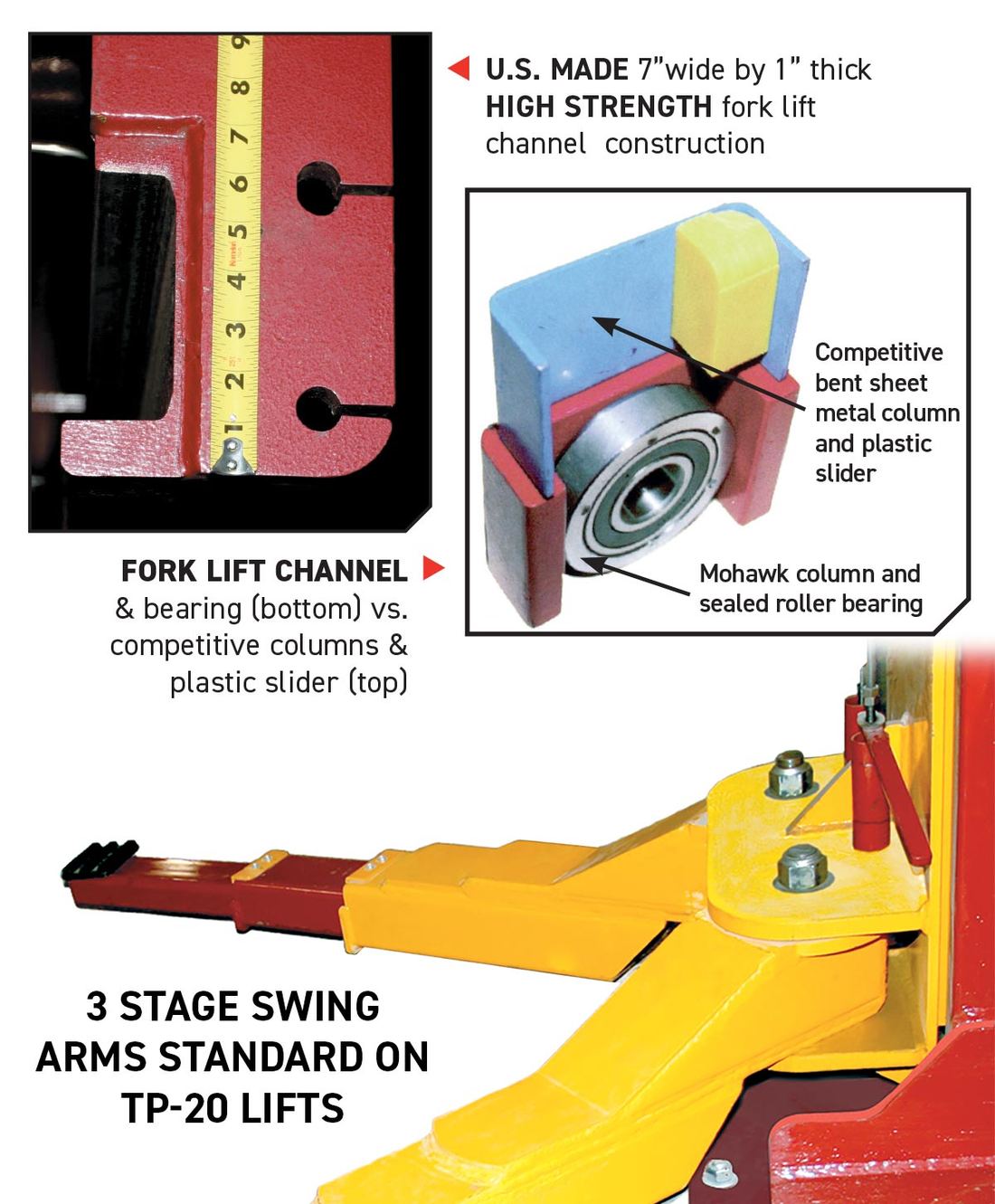

7" x 1" mast channels
Massive 7"-wide by 1"-thick forklift mast channels on a 48"-wide base — not formed sheet metal — for lateral stability at full 20,000 lb capacity.
ALI Gold Label safety

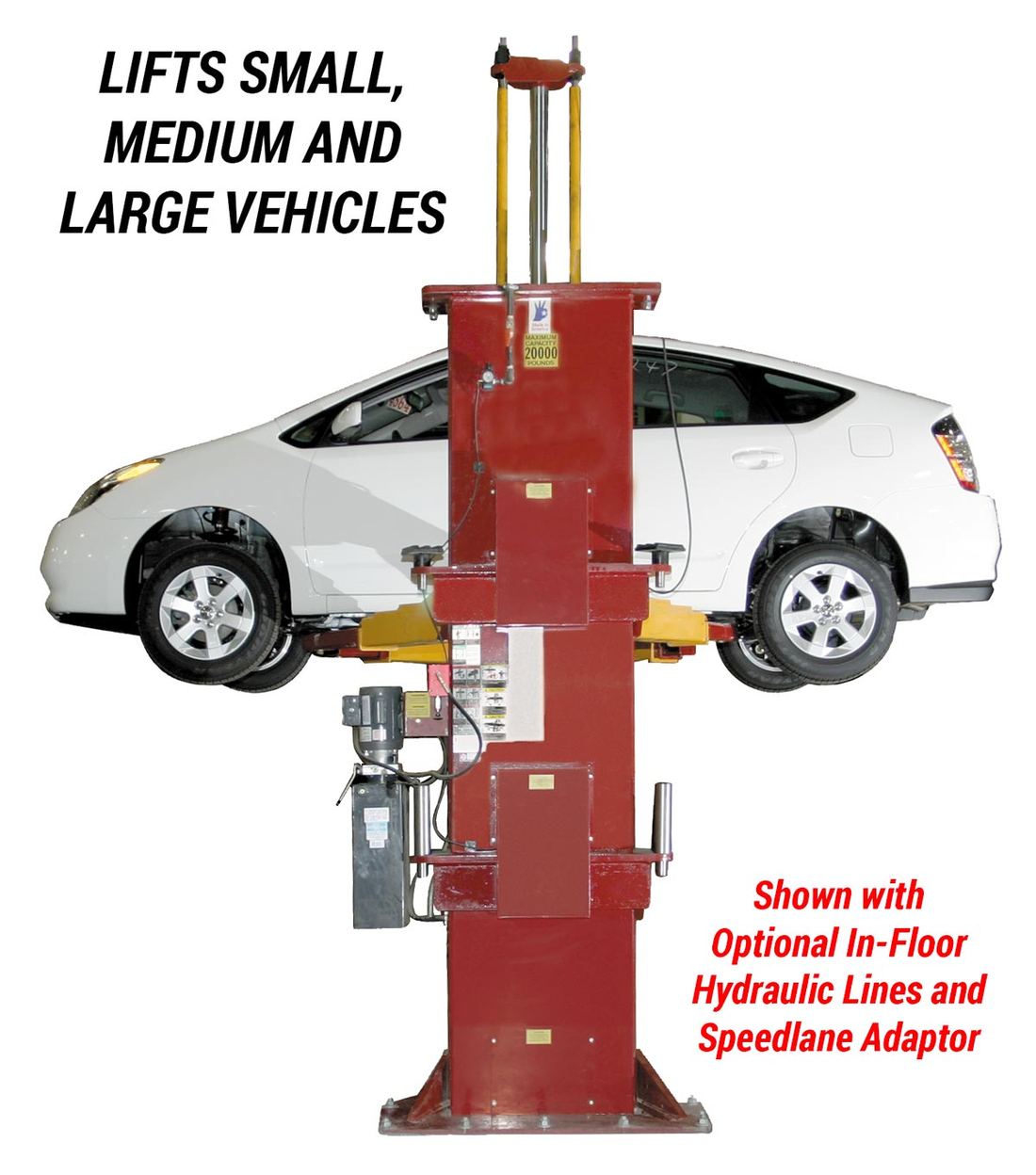

Certified to ANSI/ALI ALCTV and OSHA standards, with 14 locking positions of 1½"-thick steel safety locks and a single-point pneumatic release for both columns.

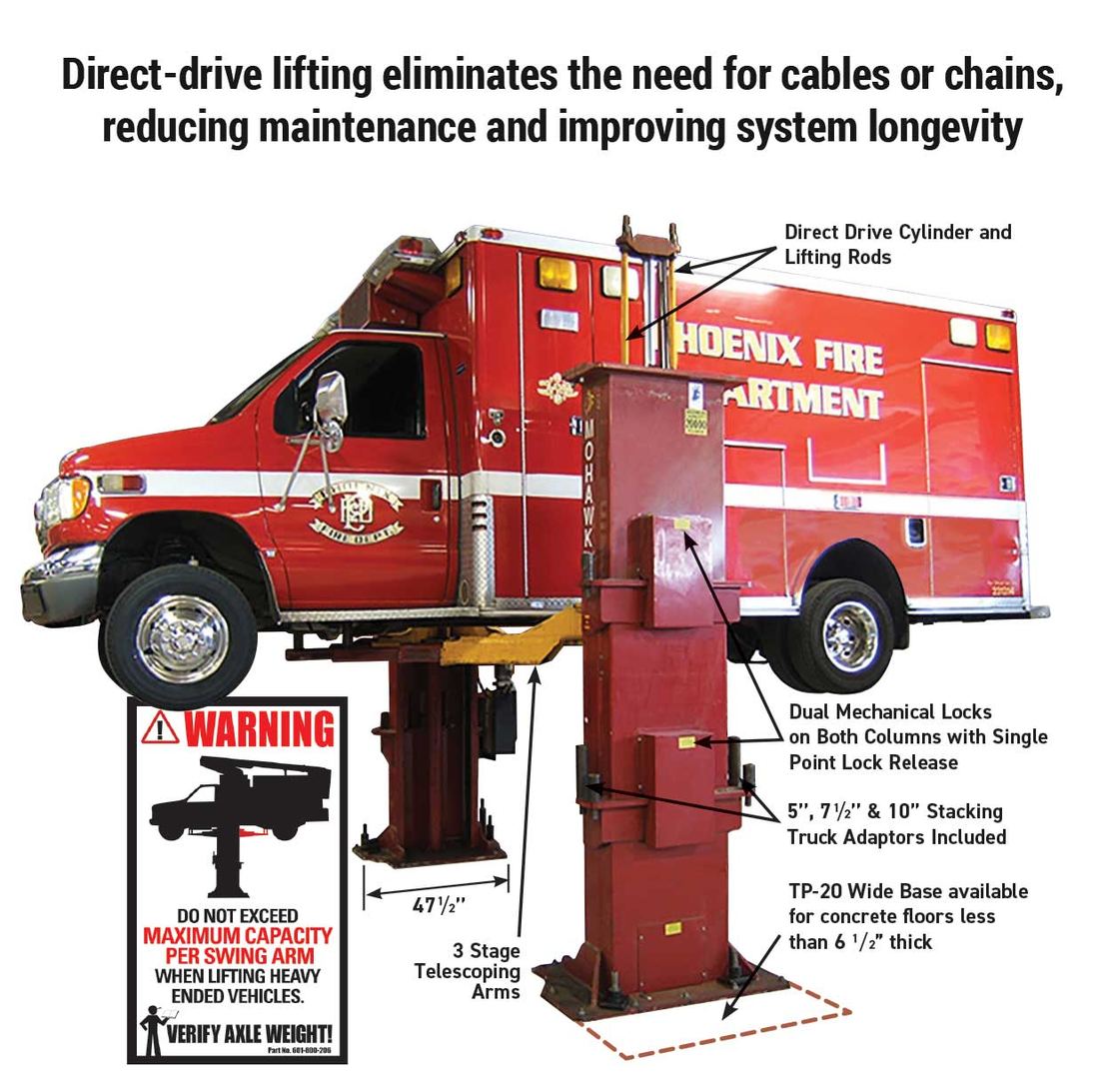

Three-stage arms & adapters
Three-stage low-profile swing arms plus included 5", 7½", and 10" stackable truck adapters reach under frames, around toolboxes, and past fuel tanks.
The data plate
The numbers that matter — straight from Mohawk's spec sheet.
Specifications per Mohawk Lifts (TP-20 / TP-20 WB wide-base). Warranty: 25 years structural, 10 years mechanical, 5 years hydraulic cylinders, limited lifetime cylinder seals. Mohawk's Extended Lifetime Cylinder Seal Warranty supplies the seals themselves to the original purchaser only — it does not cover the rebuild labour, which is work we do in-house.
Will it fit your shop?
Three measurements decide it. Grab a tape measure — or send us these numbers and we'll confirm it fits your bay.
Overhead lines run at 16' standard, adjust to any ceiling height, or route in-floor.
Column-to-column footprint — plan a 15-foot bay for full-size truck doors on both sides.
4,000 psi mix: 6½" for the standard base, 6" for the wide-base TP-20 WB. Anchor bolts included.
Where we come in on a TP-20
Wherever you buy it, this is the part we handle — anywhere in Florida.
Repair and parts
Authorized Mohawk service provider — cylinders, cables, locks, power units, and controls. We rebuild hydraulic cylinders in-house in Micanopy, so a discontinued part is not the end of the lift.
ALI-certified inspection
Annual inspection by ALI Certified Lift Inspectors with the serialized sticker and the paperwork — logged in our FieldSvc platform so the history is there when you need it.
Installation and relocation
New delivery, added bay, or a move across town — we set, anchor, and load-test Mohawk lifts to spec and commission them properly, whoever you bought them from.
Need a hand with a TP-20?
Installing one, or fixing one that's down — either way the form comes preloaded with this model, so you only have to tell us what you need. A photo of the data plate gets you a parts answer on the first call.
