Mohawk Lifts · Two-Post · ALI Certified

TP-26 / TP-30

ALI Certified 26,000 and 30,000 lb two-posts cut from 7" x 1" forklift-mast channel — full under-vehicle access for medium-duty fleet trucks, without digging up your floor — sold, delivered, and installed by Auto Lift Solutions.

30,000 lb capacity

Request a quote Call (352) 415-1321

Questions first? info@autoliftfl.com — we answer fast.

Mohawk TP-26 / TP-30 heavy-duty two-post lift with a truck

Heavy-duty lifts for heavy-duty vehicles

Surface-mounted strength that replaces in-ground lifts — no tanks, no excavation, decades of service.

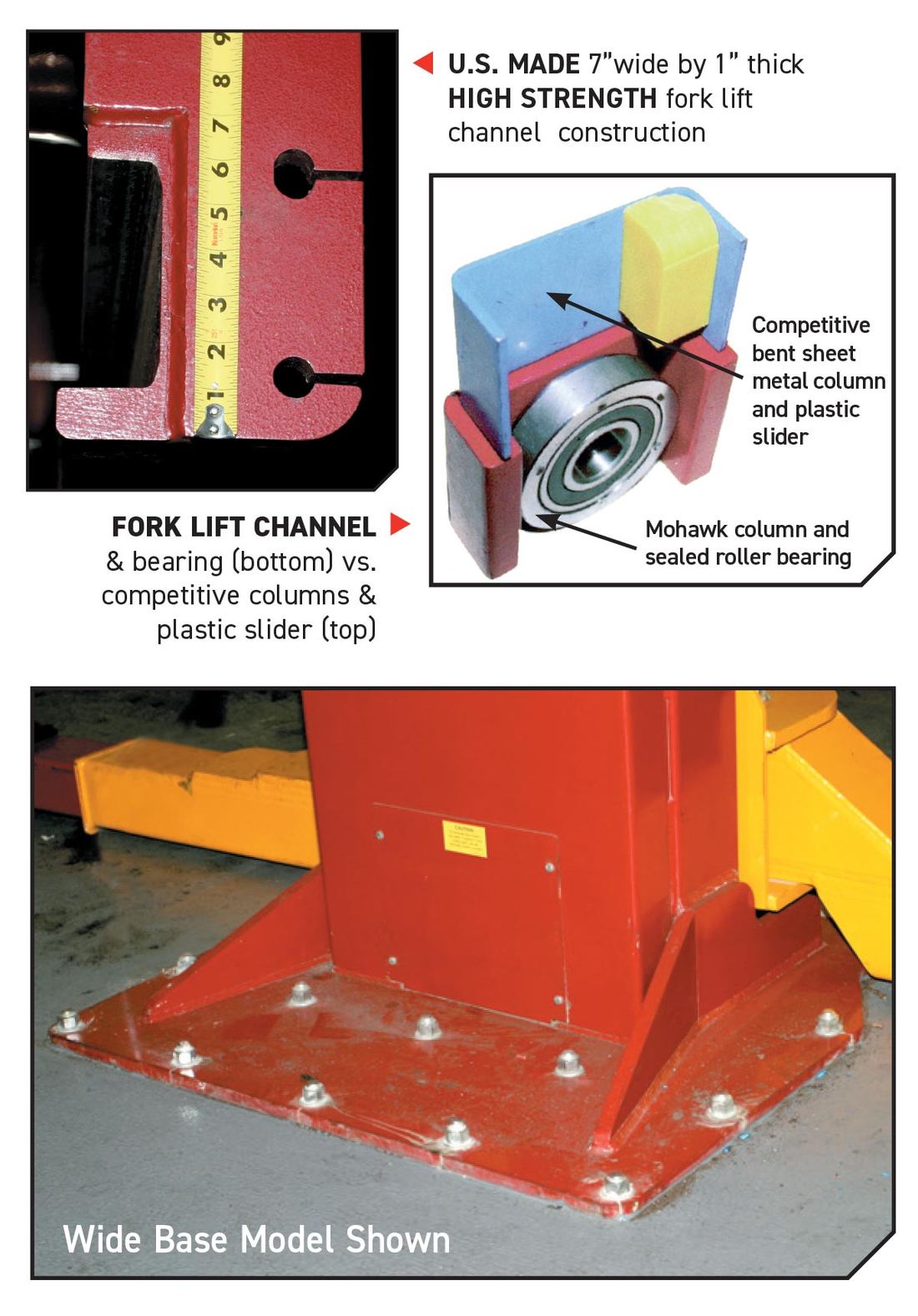

TP-26/TP-30 forklift-mast channel columns

7" x 1" mast channel steel

Columns of 7"-wide by 1"-thick forklift mast channel on a 48" base — not formed sheet metal — delivering stability that lasts for decades of full-capacity lifts.

Certified, redundant safety

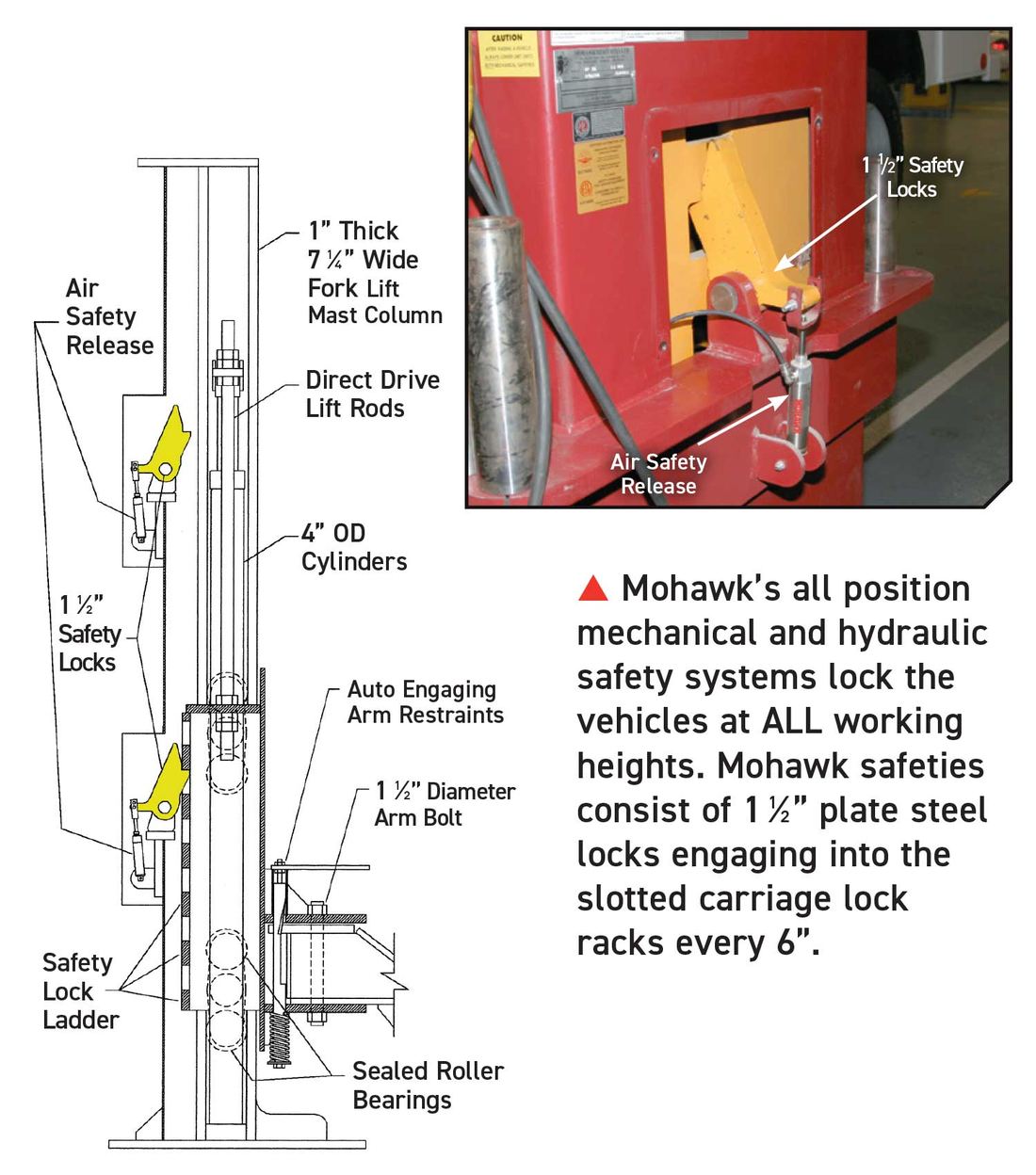

ALI Certified to OSHA and ANSI/ALI ALCTV-2006. Twelve-position 1½"-thick steel locks engage every 6" from 5" up to the full 6' 7" rise, with air-actuated release and automatic re-engagement.

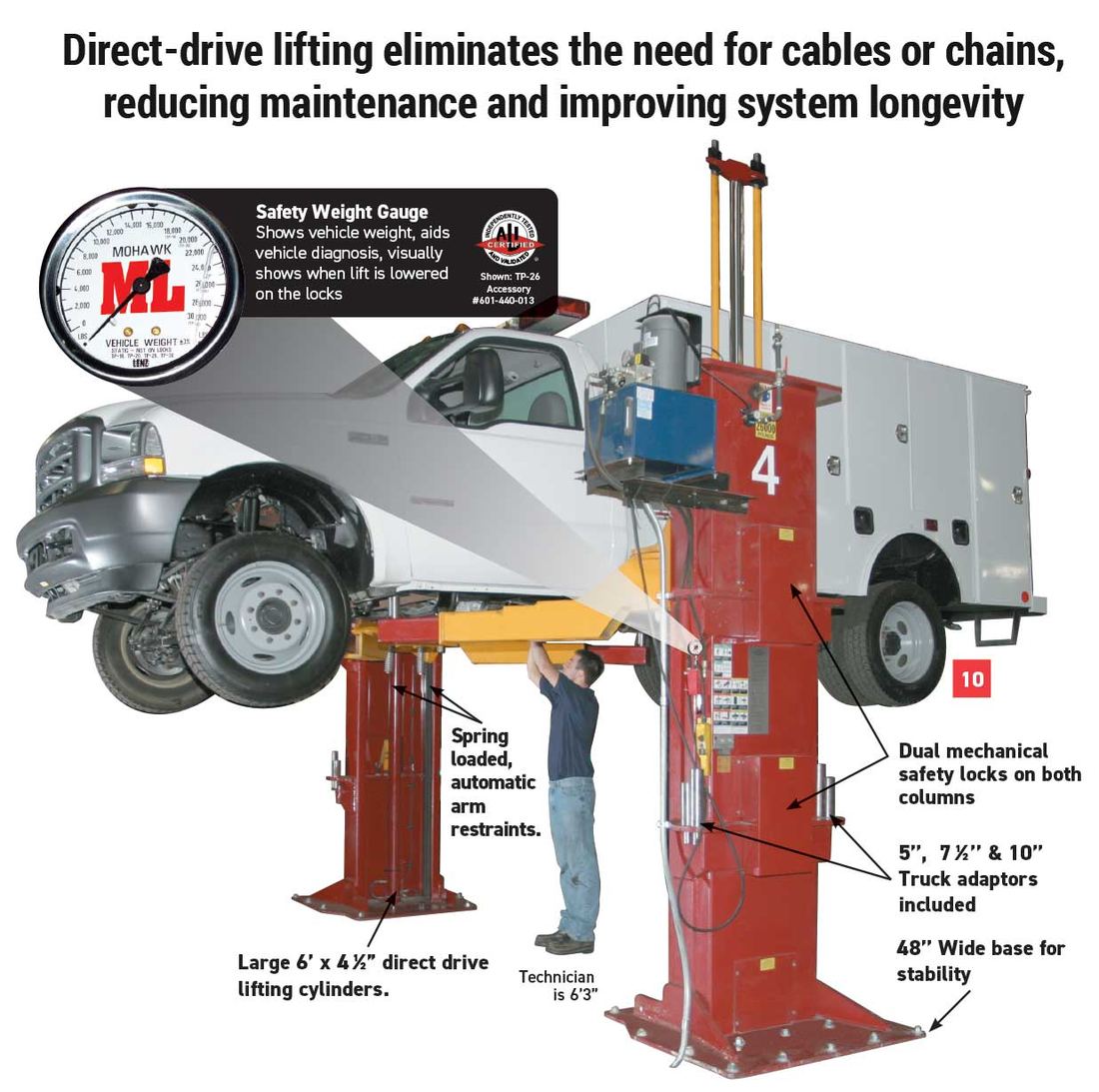

Direct drive, zero grease

Direct-drive lifting rods — no cables, chains, or pulleys to wear — with carriages on double-sealed, self-lubricating 5" steel ball-bearing rollers. Hand-held pendant control comes standard.

The data plate

The numbers that matter — straight from Mohawk's spec sheet.

MOHAWK · TP-26 / TP-30 ALI Certified

Lifting capacityTP-26: 26,000 / TP-30: 30,000 lbs

Motor5 HP, 208–230 V or 440–480 V, 3-phase

Lifting height6' under arm

Arm height @ full rise6' 7" (7' 5" with adaptors)

Arm pad height7"

Overall width15' (17' wide-base model)

Width between posts12'

Column height11'

Overhead line height16' standard, adjustable or in-floor

Lifting speed135 s

Lift weight8,800 / 9,300 lbs

Warranty25-yr structural / 10-yr mechanical / lifetime cylinder seals

Specifications per Mohawk Lifts (TP-26 / TP-30 WB). 5", 7½", and 10" stackable truck adaptors included standard; optional 3-stage arms available.

Will it fit your shop?

Three measurements decide it. Grab a tape measure — or send us these numbers and we'll confirm before you order.

11'

Column height

Overhead lines run at 16' standard, adjust to your ceiling, or route in-floor.

15'

Overall width

Column-to-column footprint (17' on the wide-base model) — plan a 16-foot bay minimum.

8" – 12"

Concrete floor

4,000 psi mix: 12" for the standard base or 8" for the wide-base model, with 1" Wej-it anchor bolts included.

Bought from the people who install it

Auto Lift Solutions sells, delivers, and installs Mohawk lifts across Florida — installed by ALI inspectors, documented for compliance from day one.

Installed by an ALI inspector

Freight, placement, anchoring, and load-testing by an authorized service provider with ALI lift inspectors on the team — commissioned to spec, not just bolted down.

Automated maintenance reminders

Opt in to SMS or email reminders for scheduled maintenance. Every visit is logged in our FieldSvc platform, so your service history is documented — not lost in a filing cabinet.

ALI inspections, paperwork included

Annual inspections with your maintenance records already in FieldSvc — the data trail ALI compliance asks for, ready when the inspector arrives.

Configure it your way

Wide-base WB models Three-stage swing arms Safety weight gauge In-floor hydraulic lines Adjustable screw pads Swing-arm safety head guards

Want an option or variant quoted? Call (352) 415-1321 or email info@autoliftfl.com.

Also worth a look

Put a TP-26 / TP-30 in your shop

Tell us about your shop and we'll quote it with delivery and installation — usually same-day.

Request a quote Talk it through first
