Mohawk Lifts · Four-Post
TR-110 / TR-120
Mohawk's biggest drive-on runway lifts — 110,000 and 120,000 lb capacities with 36" runways for the heaviest municipal and industrial trucks, built to your exact specs — installed, inspected, and serviced by Auto Lift Solutions.
Questions first? info@autoliftfl.com — we answer fast.
Mohawk sells it · we install and service it
Mohawk sells this one factory-direct, and that works out fine — we're an authorized Mohawk installer and service provider. Order it from Mohawk and we'll meet the freight truck: set, anchored, load-tested, and certified with our own ALI sticker. After that we're the ones who maintain it. Book service for your TR-110 / TR-120 → · Looking for a new lift? We're an authorized Challenger distributor: see the Challenger range →
Built for the heaviest fleets
Snow-plow rigs, articulated loaders, tankers — drive on, lift 6½ feet, and work standing up.

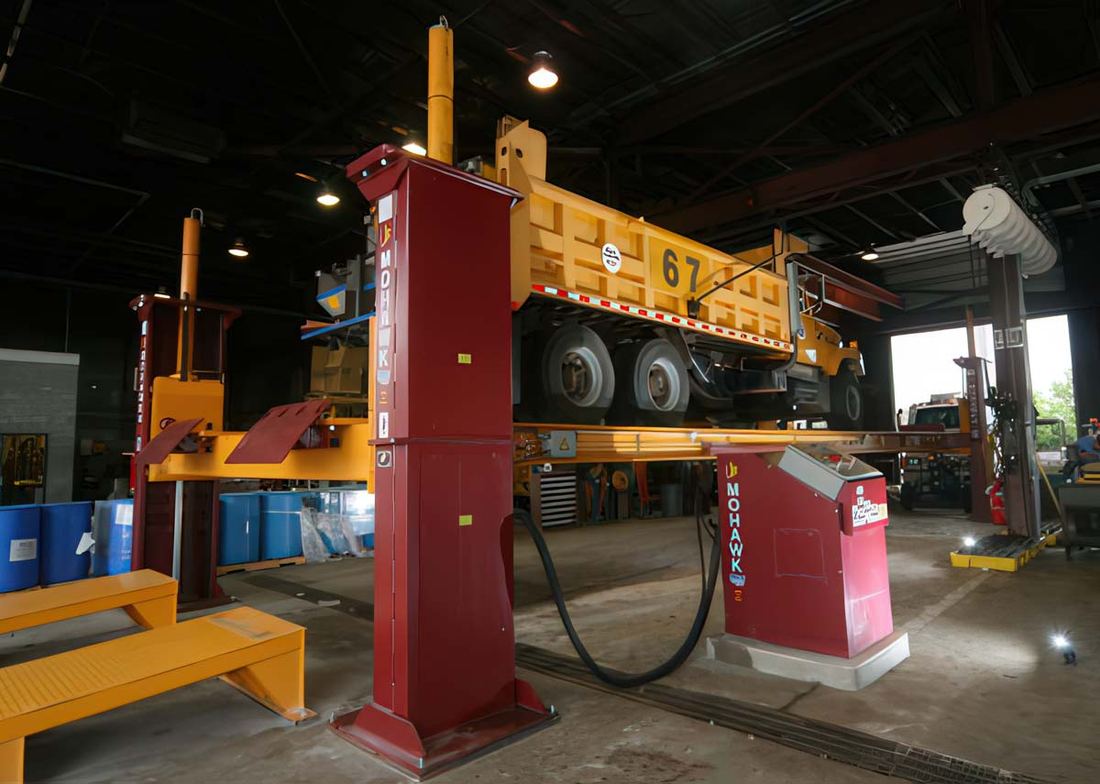

36" extra-wide runways
Three parallel 12" wide-flange I-beams per runway with a 4' clear span between, plus massive 3' x 3' x 1"-thick column base plates that spread the load across your floor.
Direct drive at every post
Direct-drive cylinders at all four posts eliminate cables and top-rail obstructions, with each carriage rolling on four 5" double-sealed, self-lubricating ball-bearing rollers.
Redundant, fail-safe lowering
Multi-position locks starting at 6", pressure-compensated flow controls, velocity fuses, cross-wired electronic monitoring with out-of-level shut-off, and a manual pump for lowering in a power outage.
The data plate
The numbers that matter — straight from Mohawk's spec sheet.
Specifications per Mohawk Lifts. Every TR-110/TR-120 can be built longer, taller, wider, or with greater capacity to your requirements.
Will it fit your shop?
Three measurements decide it. Grab a tape measure — or send us these numbers and we'll confirm it fits your bay.
Standard runways — custom lengths available for oversized equipment either direction.
With 11' 2¾" between posts; wider or narrower configurations are factory options.
4,000 psi mix at 6" — or four 6' x 6' footings poured 12" deep.
Where we come in on a TR-110 / TR-120
Wherever you buy it, this is the part we handle — anywhere in Florida.
Repair and parts
Authorized Mohawk service provider — cylinders, cables, locks, power units, and controls. We rebuild hydraulic cylinders in-house in Micanopy, so a discontinued part is not the end of the lift.
ALI-certified inspection
Annual inspection by ALI Certified Lift Inspectors with the serialized sticker and the paperwork — logged in our FieldSvc platform so the history is there when you need it.
Installation and relocation
New delivery, added bay, or a move across town — we set, anchor, and load-test Mohawk lifts to spec and commission them properly, whoever you bought them from.
Need a hand with a TR-110 / TR-120?
Installing one, or fixing one that's down — either way the form comes preloaded with this model, so you only have to tell us what you need. A photo of the data plate gets you a parts answer on the first call.
