Mohawk Lifts · Four-Post
TR-35 / TR-50 / TR-75

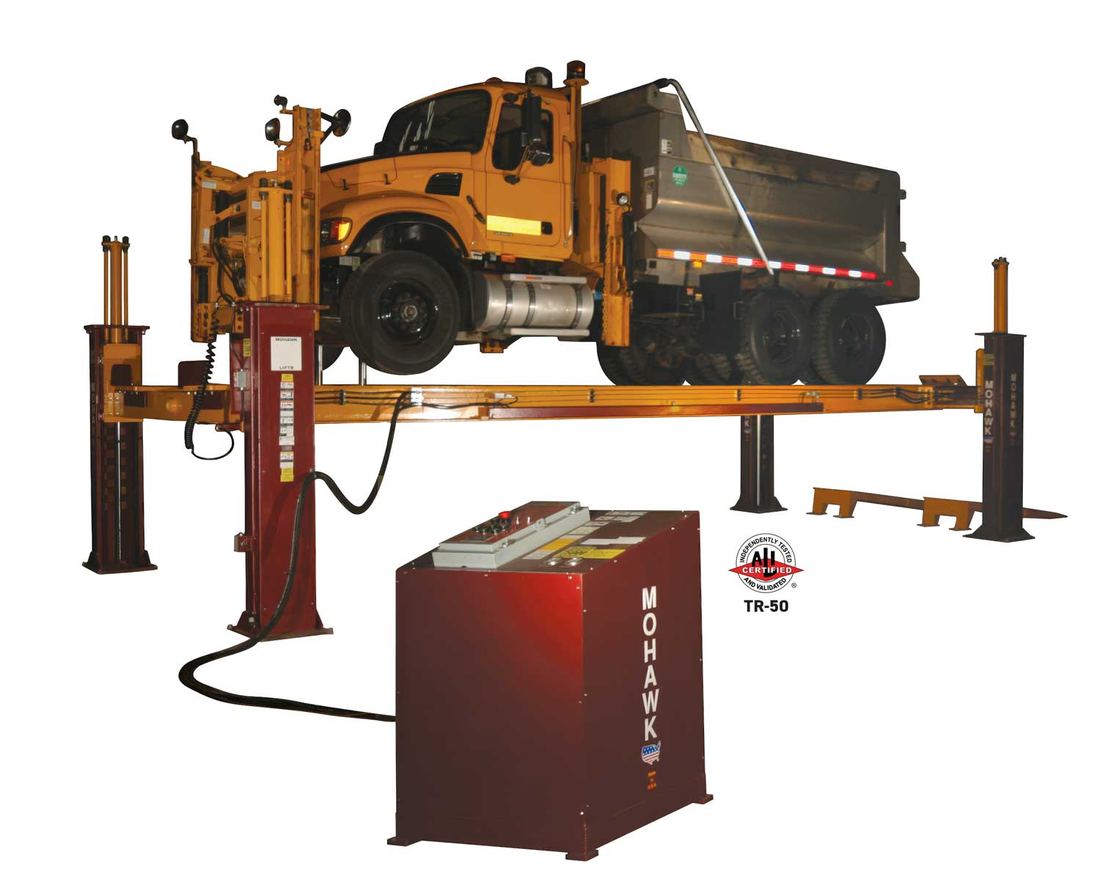

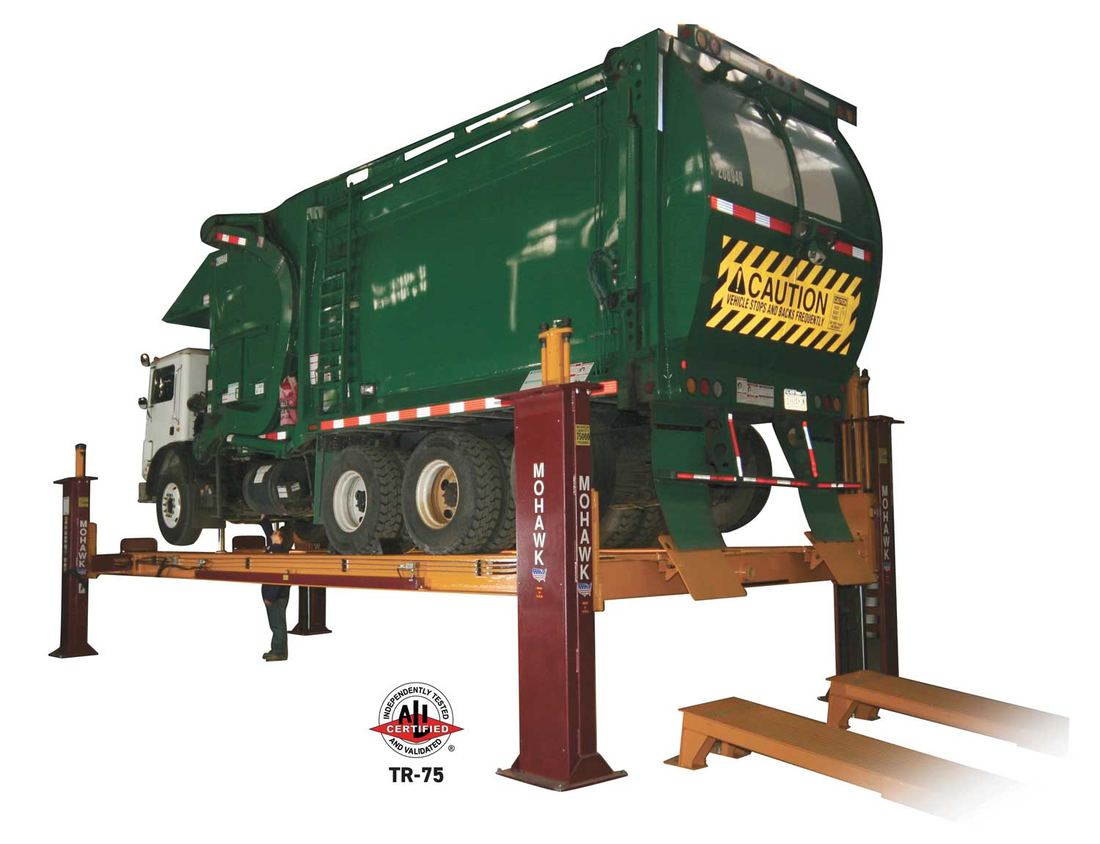

Drive-on runway lifts for the whole public-works yard — 35,000, 50,000, and 75,000 lb capacities that swallow plow trucks, loaders, and buses whole — installed, inspected, and serviced by Auto Lift Solutions.
Questions first? info@autoliftfl.com — we answer fast.
Mohawk sells it · we install and service it
Mohawk sells this one factory-direct, and that works out fine — we're an authorized Mohawk installer and service provider. Order it from Mohawk and we'll meet the freight truck: set, anchored, load-tested, and certified with our own ALI sticker. After that we're the ones who maintain it. Book service for your TR-35 / TR-50 / TR-75 → · Looking for a new lift? We're an authorized Challenger distributor: see the Challenger range →
Drive on. Lift. Get to work.
No wheelbase adjustments, no in-ground tanks — the TR Series turns any bay into a heavy-fleet service station.
No-setup drive-on service
Simply drive on and start work — no wheelbase adjustments. The surface-mounted design installs fast and leaves a completely clear floor for toolboxes, tire dollies, and shop equipment.

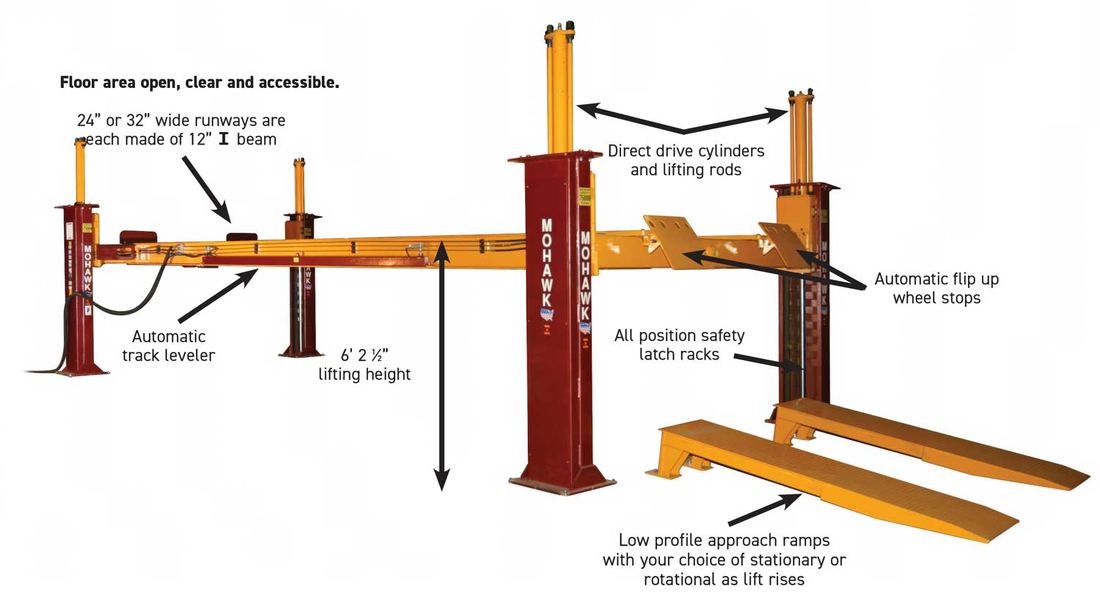

Triple I-beam runways
Runways built from three parallel 12" wide-flange I-beams with direct-drive cylinders at each post — no cables, no top-rail obstruction, and 24" or 32" track widths with 4' of clear span between.
Level under any load
Multi-position mechanical locks in all four posts, redundant hydraulic safeties with velocity fuses, an automatic track leveler, and automatic flip-up wheel chocks front and rear.
The data plate
The numbers that matter — straight from Mohawk's spec sheet.
Specifications per Mohawk Lifts. Mechanical locks start at 10"; automatic wheel chocks front and rear are standard equipment.
Will it fit your shop?
Three measurements decide it. Grab a tape measure — or send us these numbers and we'll confirm it fits your bay.
With 25' runways — 20' to 35'-plus track lengths shift the footprint either way.
Adjustable, with 11' 10" between posts — sized for winged snow-plow rigs.
4,000 psi mix at 6" — or four 6' x 6' footings poured 12" deep.
Where we come in on a TR-35 / TR-50 / TR-75
Wherever you buy it, this is the part we handle — anywhere in Florida.
Repair and parts
Authorized Mohawk service provider — cylinders, cables, locks, power units, and controls. We rebuild hydraulic cylinders in-house in Micanopy, so a discontinued part is not the end of the lift.
ALI-certified inspection
Annual inspection by ALI Certified Lift Inspectors with the serialized sticker and the paperwork — logged in our FieldSvc platform so the history is there when you need it.
Installation and relocation
New delivery, added bay, or a move across town — we set, anchor, and load-test Mohawk lifts to spec and commission them properly, whoever you bought them from.
Need a hand with a TR-35 / TR-50 / TR-75?
Installing one, or fixing one that's down — either way the form comes preloaded with this model, so you only have to tell us what you need. A photo of the data plate gets you a parts answer on the first call.
