Mohawk Lifts · Four-Post
TR-19 / TR-25
Drive-on four-posts for everything from cars to buses and small RVs — 19,000 and 25,000 lb capacities with six feet of unobstructed under-vehicle clearance — installed, inspected, and serviced by Auto Lift Solutions.
Questions first? info@autoliftfl.com — we answer fast.
Mohawk sells it · we install and service it
Mohawk sells this one factory-direct, and that works out fine — we're an authorized Mohawk installer and service provider. Order it from Mohawk and we'll meet the freight truck: set, anchored, load-tested, and certified with our own ALI sticker. After that we're the ones who maintain it. Book service for your TR-19 / TR-25 → · Looking for a new lift? We're an authorized Challenger distributor: see the Challenger range →
The all-purpose fleet lift
Above-ground installation indoors or out — none of the environmental headaches of in-ground lifts, all of the access.

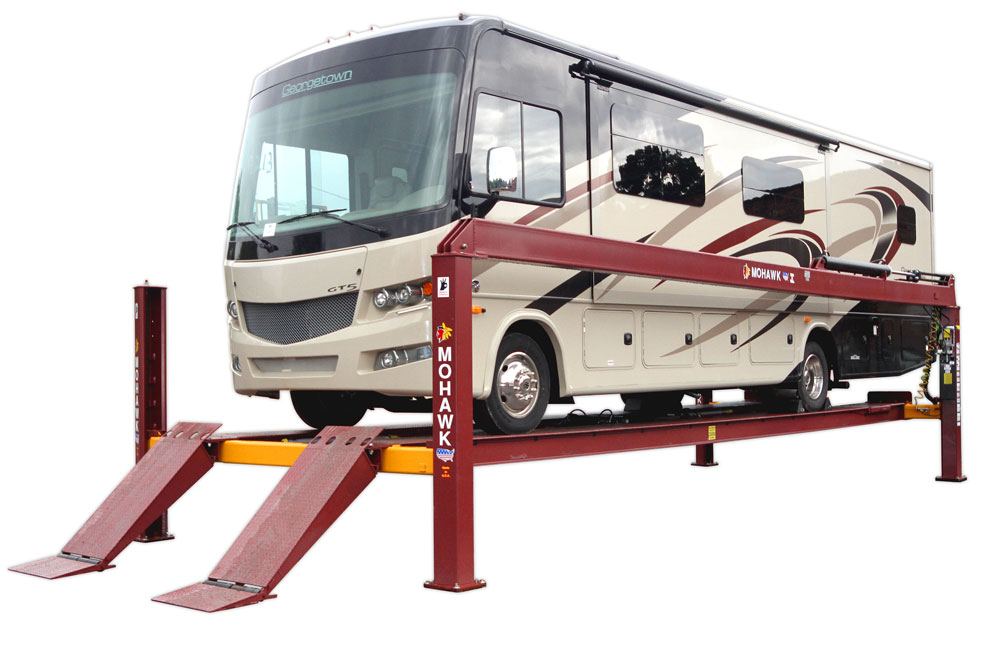

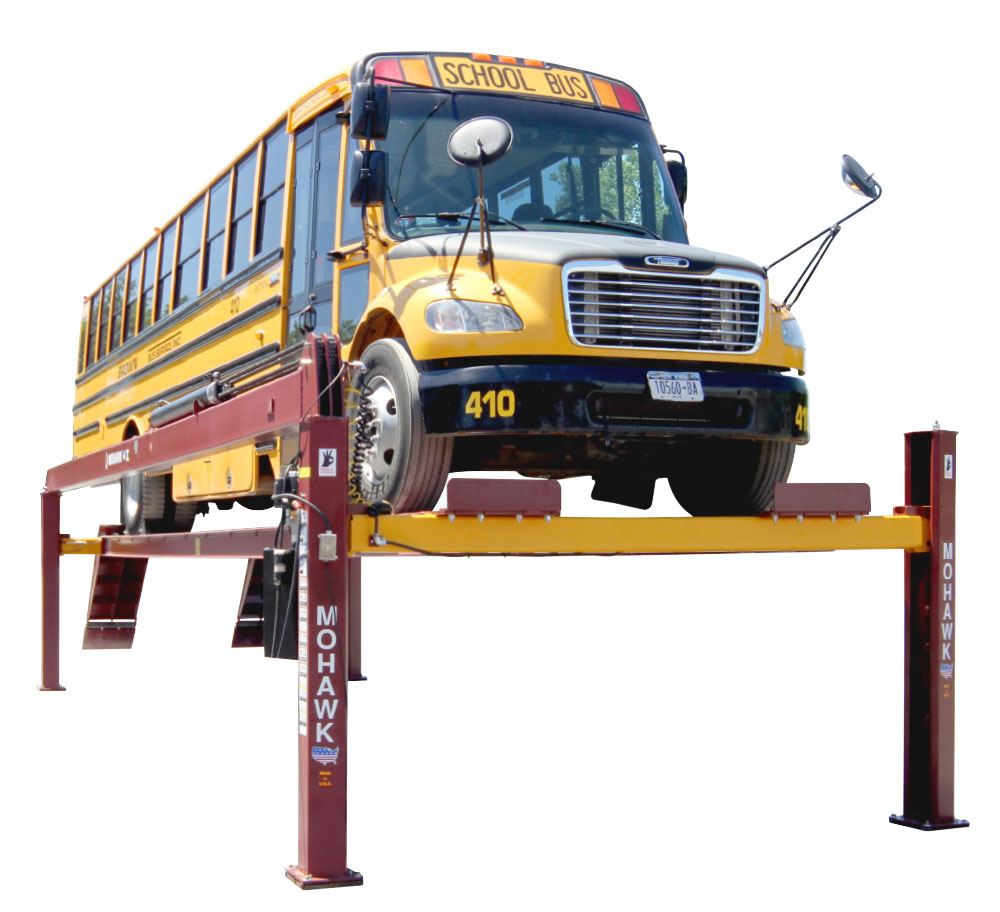

Cars through buses & RVs
Adjustable runways handle cars, vans, trucks, buses, RVs, and twin-axle tractors, raising them a full 5' 9" so tall technicians have real working room.

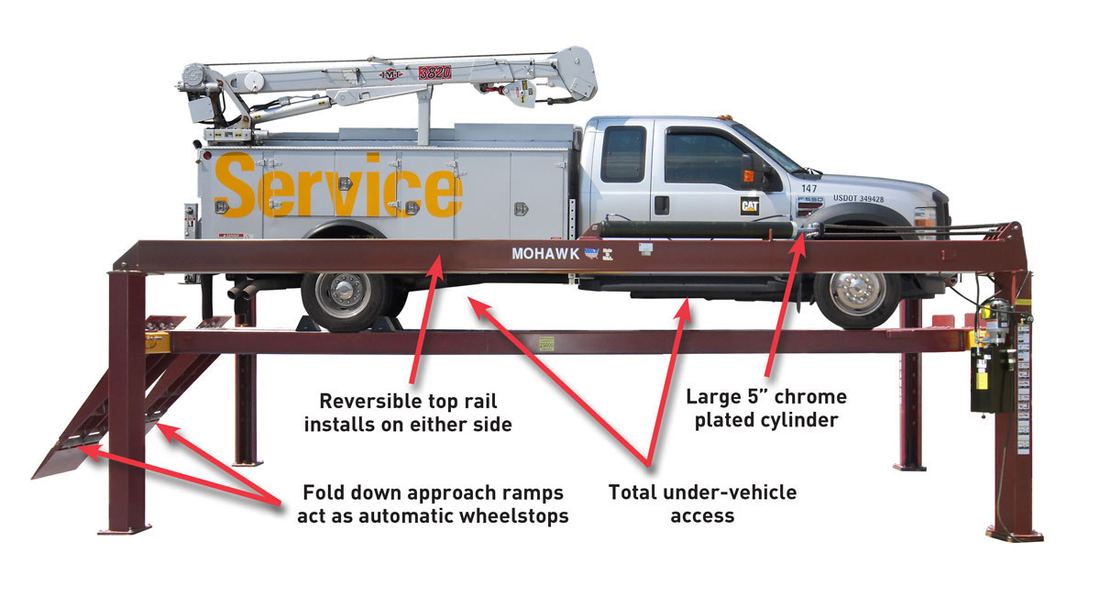

Wide diamond-plate runways
24"-wide heavy-duty diamond-plate runways on parallel 8" steel I-beams leave a 48" clear span underneath — and can be ordered up to 9" wider for plow trucks and RV mirrors.
Locks at all four posts
Multi-position mechanical locks engage at every post, backed by pressure-compensated flow controls, tamper-proof velocity fuses, and a two-hand single-position release for controlled lowering.
The data plate
The numbers that matter — straight from Mohawk's spec sheet.
Specifications per Mohawk Lifts. Optional 110 V electric/hydraulic rolling jacking beams (15,000 or 25,000 lb) position anywhere along the runways.
Will it fit your shop?
Three measurements decide it. Grab a tape measure — or send us these numbers and we'll confirm it fits your bay.
With standard 20' runways, including approach ramps — longer 25' and 30' track options stretch the footprint.
11' clear between posts standard; wider configurations available for plow trucks and RVs.
4,000 psi mix at 4½" — installs indoors or outdoors on a standard slab.
Where we come in on a TR-19 / TR-25
Wherever you buy it, this is the part we handle — anywhere in Florida.
Repair and parts
Authorized Mohawk service provider — cylinders, cables, locks, power units, and controls. We rebuild hydraulic cylinders in-house in Micanopy, so a discontinued part is not the end of the lift.
ALI-certified inspection
Annual inspection by ALI Certified Lift Inspectors with the serialized sticker and the paperwork — logged in our FieldSvc platform so the history is there when you need it.
Installation and relocation
New delivery, added bay, or a move across town — we set, anchor, and load-test Mohawk lifts to spec and commission them properly, whoever you bought them from.
Need a hand with a TR-19 / TR-25?
Installing one, or fixing one that's down — either way the form comes preloaded with this model, so you only have to tell us what you need. A photo of the data plate gets you a parts answer on the first call.
